6116LA90DB - Renesas Electronics

Description: The 6116 5V CMOS SRAM is organized as 2K x 8. The 6116 offers a reduced power standby mode.The low-power (LA) version also offers a battery backup data retention capability where the circuit typically consumes only 1μW to 4μW operating off a 2V battery. All inputs and outputs are TTL-compatible. Fully static asynchronous circuitry is used, requiring no clocks or refreshing for operation. Military grade product is available.

Download 6116LA90DB Model

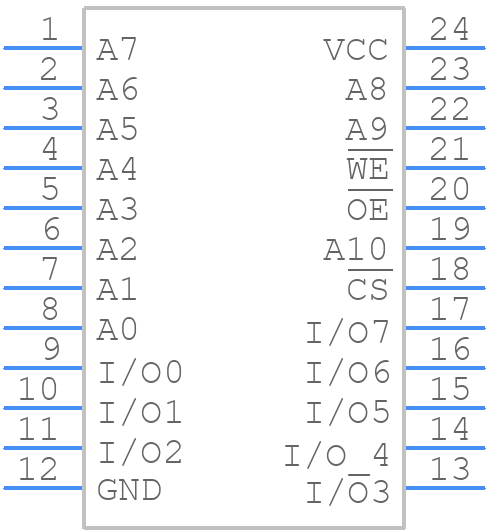

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

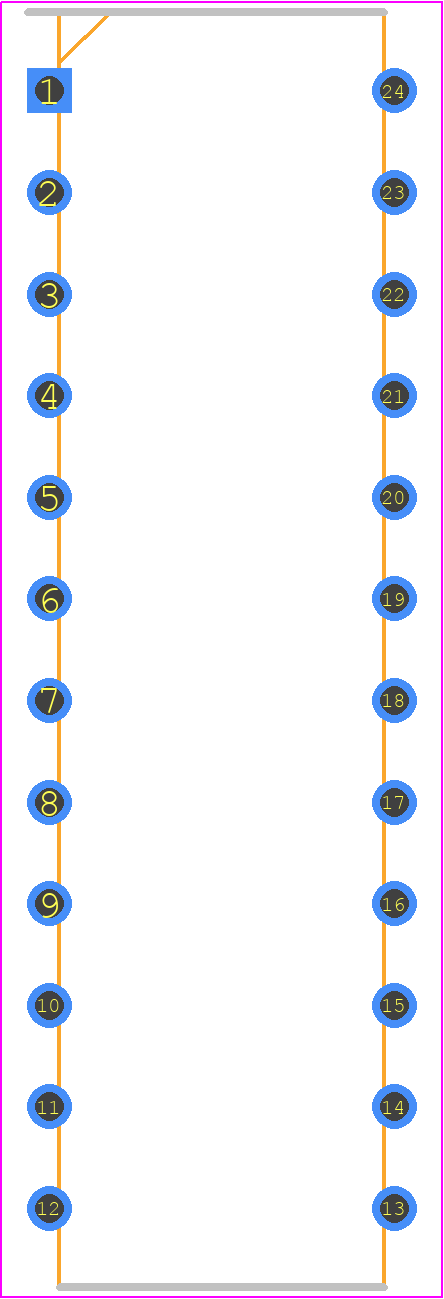

6116LA90DB - Renesas Electronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP-24
click to zoom
3D Models
6116LA90DB - Renesas Electronics  - 3D model - Dual-In-Line Packages - PDIP-24
click to zoom

6116LA90DB Details

  • Manufacturer Part Number:

    6116LA90DB

  • Brand Name:

    Renesas

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    CDIP

  • Package Description:

    DIP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CD24

  • ECCN Code:

    3A001.A.2.C

  • HTS Code:

    8542.32.00.41

  • Date Of Intro:

    2020-07-21

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Access Time-Max:

    90 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    R-CDIP-T24

  • JESD-609 Code:

    e0

  • Length:

    32 mm

  • Memory Density:

    16384 bit

  • Memory IC Type:

    STANDARD SRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Ports:

    1

  • Number of Terminals:

    24

  • Number of Words:

    2048 words

  • Number of Words Code:

    2000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Organization:

    2KX8

  • Output Characteristics:

    3-STATE

  • Output Enable:

    YES

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    240

  • Screening Level:

    MIL-STD-883 Class B

  • Seated Height-Max:

    2.9 mm

  • Standby Current-Max:

    0.025 A

  • Standby Voltage-Min:

    2 V

  • Supply Current-Max:

    0.085 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    15.24 mm
