The recommended PCB layout for optimal performance can be found in the Wurth Elektronik application note 'Layout Recommendations for WE-LQS Inductors'. It provides guidelines for pad layout, spacing, and routing to minimize losses and ensure reliable operation.
To select the correct inductor value, consider the operating frequency, current requirements, and desired inductance value. Wurth Elektronik provides an online inductor selection tool that can help narrow down the options based on specific application requirements.
The maximum operating temperature for the 61201022021 inductor is 125°C, as specified in the datasheet. However, it's essential to consider the derating curves and thermal management strategies to ensure reliable operation within the specified temperature range.
The 61201022021 inductor is designed to withstand moderate vibration levels. However, for high-vibration environments, it's recommended to consult with Wurth Elektronik's technical support team to discuss specific requirements and potential customization options.
The recommended soldering profile for the 61201022021 inductor is a reflow soldering process with a peak temperature of 260°C and a dwell time of 30-60 seconds. It's essential to follow the recommended soldering profile to ensure reliable assembly and minimize the risk of damage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
61201022021 Overview

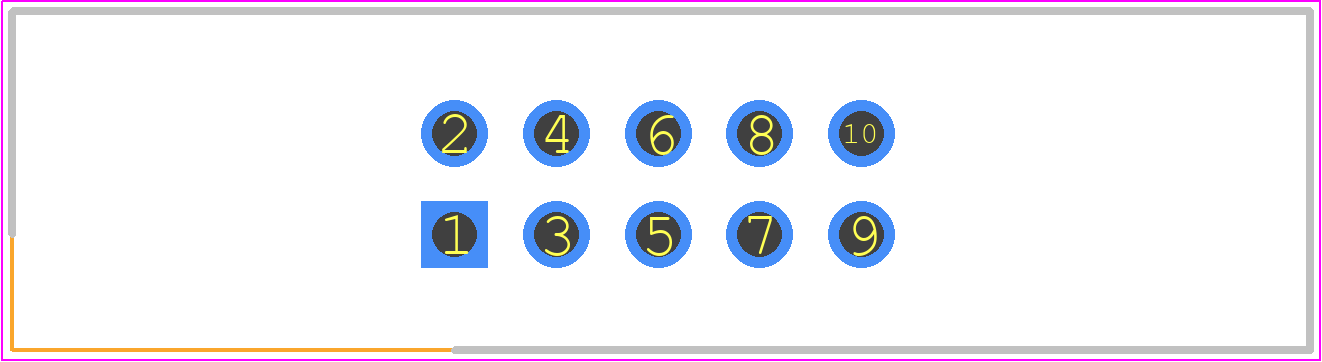

Use the download button to access the 61201022021 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 61201,
or try a keyword search, such as Headers and Edge Type Connectors
