61233420621 - Würth Elektronik

Description: WR-BHD 2.54mm Male SMT Box Header Pad & Reel Pack. 34 pins, SMT, tape & reel with pad, gold plating

Download 61233420621 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
61233420621 - Würth Elektronik - PCB symbol
click to zoom
PCB Footprints

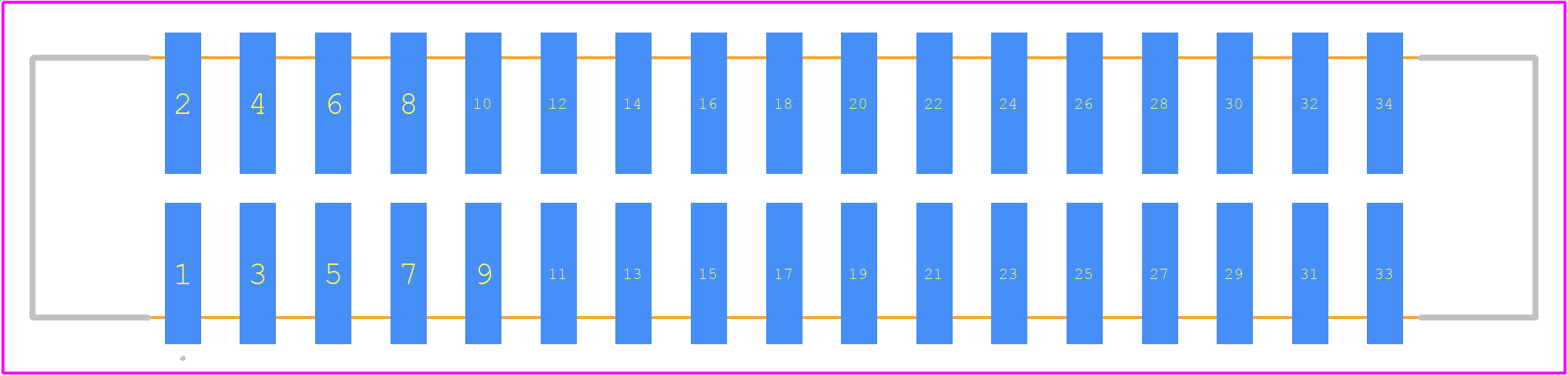

61233420621 - Würth Elektronik PCB footprint - Other - Other - 61233420621-2
click to zoom
3D Models
61233420621 - Würth Elektronik - 3D model - Other - 61233420621-2
click to zoom

61233420621 Details

  • Manufacturer Part Number:

    61233420621

  • Brand Name:

    Wurth Electronik

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Wurth Elektronik

  • YTEOL:

    15

  • Body Breadth:

    0.36 inch

  • Body Depth:

    0.398 inch

  • Body Length:

    2.007 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    500VAC V

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    5.9944 mm

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    34

  • UL Flammability Code:

    94V-0

61233420621 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the 61233420621 can be found in the Wurth Elektronik's PCB Library or in the component's 3D model. It's essential to follow the recommended footprint to ensure proper assembly and to prevent thermal and electrical issues.
  • The 61233420621 has a thermal pad on the bottom, which should be connected to a thermal via or a copper plane on the PCB to dissipate heat efficiently. Ensure that the thermal via or copper plane is connected to a heat sink or a metal plate to dissipate heat further.
  • The maximum operating temperature for the 61233420621 is 125°C, as specified in the datasheet. However, it's recommended to operate the component at a lower temperature to ensure reliability and longevity.
  • The 61233420621 is designed to withstand moderate vibrations, but it's essential to ensure that the component is properly secured to the PCB and that the PCB is rigid enough to withstand the vibrations. Consult Wurth Elektronik's application notes for more information on vibration testing and design considerations.
  • To troubleshoot issues with the 61233420621, start by checking the component's voltage and current ratings, as well as the PCB's power supply and signal integrity. Use oscilloscopes and logic analyzers to debug the issue. Consult Wurth Elektronik's application notes and technical support for further assistance.
