The recommended PCB footprint for the 61301421021 can be found in the Wurth Elektronik's PCB Library or by contacting their technical support. It's essential to ensure the correct footprint to prevent soldering issues and ensure reliable operation.
The 61301421021 has a maximum operating temperature of 125°C. Ensure proper thermal management by providing adequate heat dissipation, using thermal vias, and keeping the component away from heat sources. Consult the datasheet for thermal resistance and junction-to-ambient thermal resistance values.
Follow the recommended soldering conditions outlined in the datasheet, which include a peak temperature of 260°C, a soldering time of 3-5 seconds, and a maximum of 2 reflows. Ensure proper soldering techniques to prevent damage to the component.
To troubleshoot issues with the 61301421021, start by verifying the component's pinout and connections. Check for soldering issues, incorrect component orientation, or incorrect voltage supply. Consult the datasheet and application notes for troubleshooting guidelines and contact Wurth Elektronik's technical support if needed.
The 61301421021 is RoHS and REACH compliant. Ensure compliance with environmental regulations, such as WEEE and ErP, by following the manufacturer's guidelines and local regulations. Consult the datasheet and Wurth Elektronik's website for more information.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
61301421021 Overview

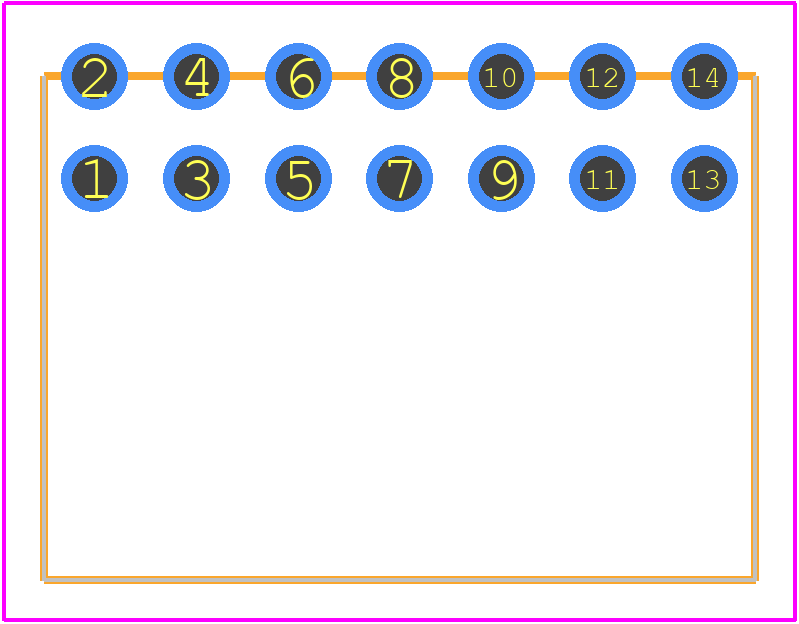

Use the download button to access the 61301421021 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 61301,
or try a keyword search, such as Headers and Edge Type Connectors
