Wurth Elektronik provides a recommended PCB layout and land pattern in their application notes and whitepapers. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and mechanical stability.
The 61302211021 has a high power density, so thermal management is crucial. Ensure good airflow, use thermal vias, and consider heat sinks or thermal pads to keep the component within its operating temperature range.
The maximum operating temperature range for the 61302211021 is typically specified as -40°C to +125°C. However, it's essential to check the specific datasheet and application notes for the exact temperature range, as it may vary depending on the specific component and application.
Follow the recommended soldering profile and techniques, and ensure the component is properly aligned and secured to the PCB. Use a soldering iron with a temperature range of 220°C to 250°C, and apply a small amount of solder paste or flux to the pads.
The 61302211021 is a sensitive component and requires proper ESD protection during handling and assembly. Use ESD-safe materials, follow proper grounding procedures, and handle the component by the body or pins to prevent damage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
61302211021 Overview

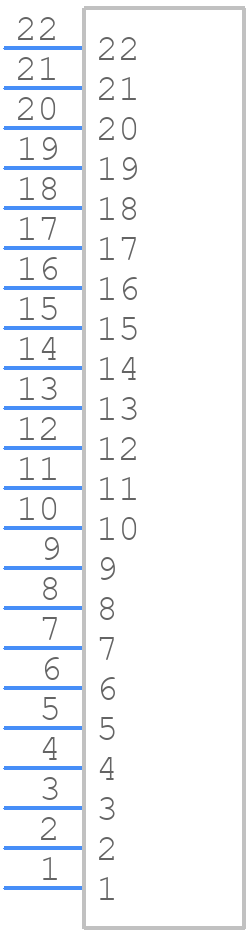

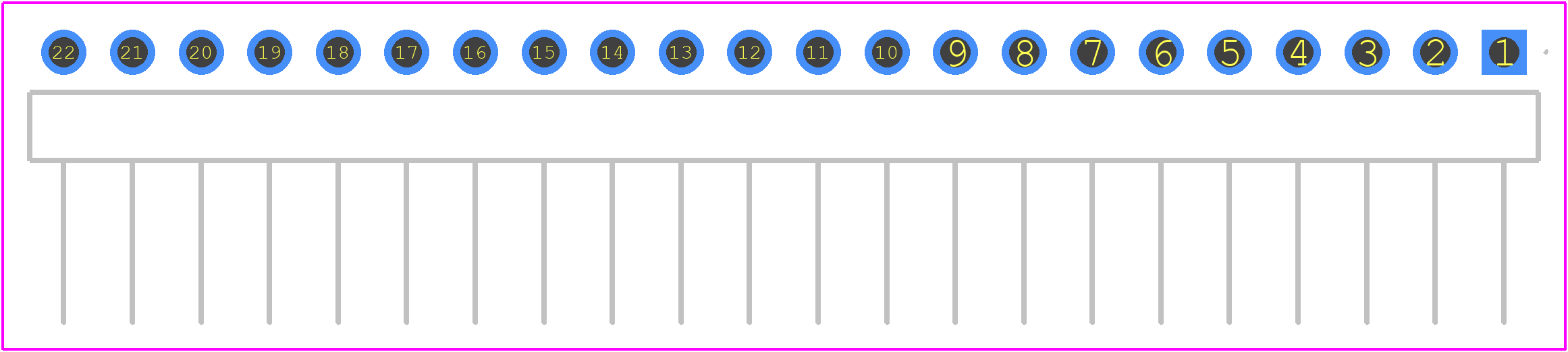

Use the download button to access the 61302211021 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 61302,
or try a keyword search, such as Headers and Edge Type Connectors
