61303621021 - Würth Elektronik

Description: WR-PHD 2.54 mm Angled Dual Pin Header 36 pins, dual row, right angled, gold plating

Download 61303621021 Model

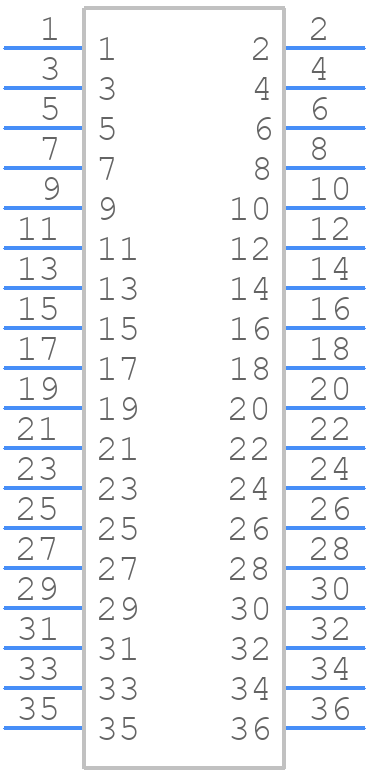

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

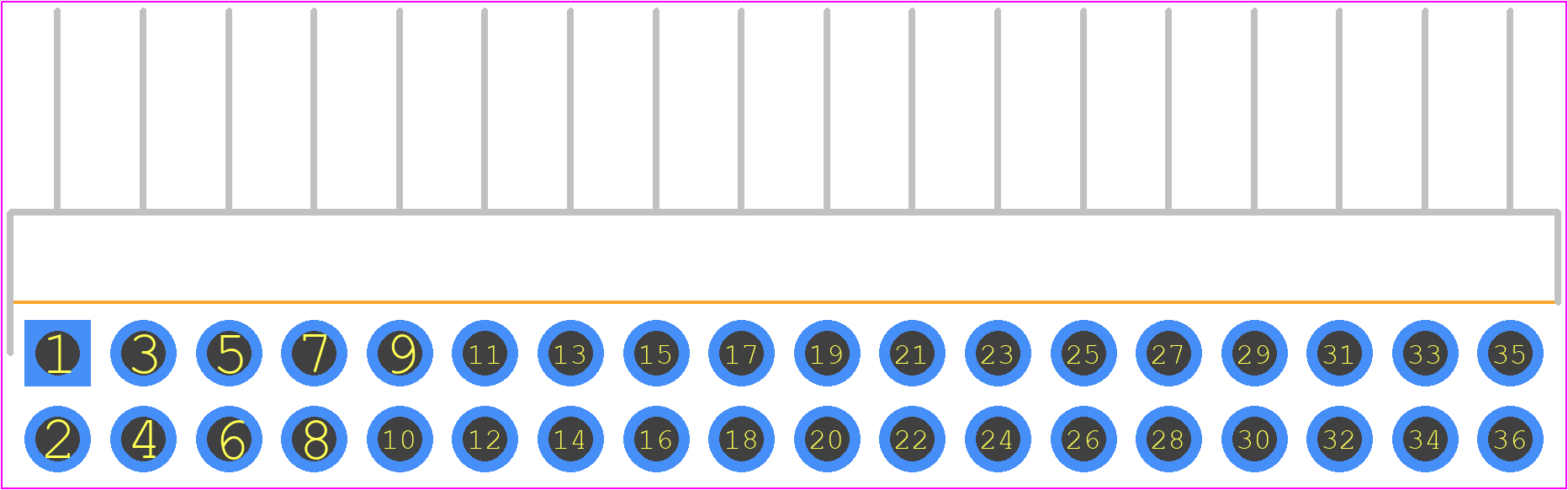

PCB Footprints
61303621021 - Würth Elektronik PCB footprint - Header, Unshrouded - Right Angle PTH Pin - Header, Unshrouded - Right Angle PTH Pin - 61303621021
click to zoom
3D Models
61303621021 - Würth Elektronik  - 3D model - Header, Unshrouded - Right Angle PTH Pin - 61303621021
click to zoom

61303621021 Details

  • Manufacturer Part Number:

    61303621021

  • Brand Name:

    Wurth Electronik

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Wurth Elektronik

  • YTEOL:

    15

  • Body Breadth:

    0.2 inch

  • Body Depth:

    0.259 inch

  • Body Length:

    1.8 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    500VAC V

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.54 mm

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.118 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    36

  • UL Flammability Code:

    94V-0

61303621021 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the 61303621021 can be found in the Wurth Elektronik's PCB Library or in the component's 3D model, which can be downloaded from the Wurth Elektronik website. The footprint includes the recommended pad layout, dimensions, and spacing for optimal assembly and reliability.
  • The 61303621021 has a maximum operating temperature of 125°C. To ensure proper thermal management, it's recommended to provide a thermal pad on the PCB, use a heat sink if necessary, and ensure good airflow around the component. Additionally, follow the recommended soldering profile to avoid overheating the component during assembly.
  • The recommended soldering process for the 61303621021 is a reflow soldering process with a peak temperature of 260°C and a dwell time of 30-60 seconds. It's essential to follow the recommended soldering profile to avoid damaging the component. Hand soldering is not recommended due to the component's small size and high thermal sensitivity.
  • The 61303621021 is designed to withstand moderate vibration levels. However, if your application involves high-vibration environments, it's recommended to consult with Wurth Elektronik's technical support team to discuss the component's suitability and potential modifications to the PCB design or assembly process.
  • To ensure the 61303621021's EMC, follow proper PCB design practices, such as using a solid ground plane, minimizing signal loop areas, and using shielding if necessary. Additionally, ensure that the component is properly decoupled and that the PCB layout is optimized for electromagnetic interference (EMI) reduction.
