614-93-308-31-012000 footprint, schematic symbol and 3D model by Mill-Max

Symbol

click to zoom

PCB Footprints

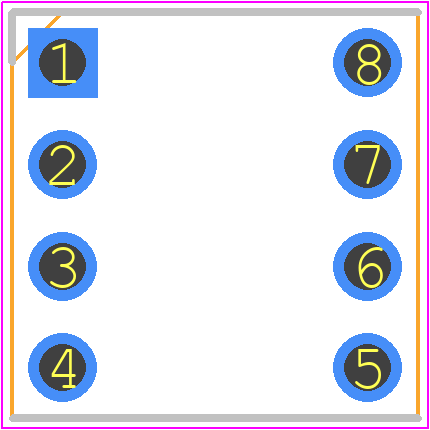

614-93-308-31-012000 - Mill-Max PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 614-93-308-31-012000

click to zoom

3D Models

614-93-308-31-012000 - Mill-Max - 3D model - Dual-In-Line Sockets - 614-93-308-31-012000

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 614-93-308-31-012000
Part Number 614-93-308-31-012000
Manufacturer Mill-Max
Pin Count 8
Part Category Connector
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - 614-93-308-31-012000
Released Date Sep 14, 2022
Last Modified Date Mar 3, 2026 12:41 PM UTC
Pinout / Pin List Click Here (Member Only)

614-93-308-31-012000 Details

Manufacturer Part Number:
614-93-308-31-012000
Pbfree Code:
No
Part Life Cycle Code:
Active
Country Of Origin:
USA
ECCN Code:
EAR99
HTS Code:
8536.90.40.00
Manufacturer:
Mill-Max Mfg Corp
YTEOL:
5.48
Additional Feature:
DIP SOCKET
Body Breadth:
0.4 inch
Body Length:
0.4 inch
Contact Configuration:
RECTANGLE
Contact Finish Mating:
NOT APPLICABLE
Contact Finish Termination:
Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact Material:
NOT APPLICABLE
Contact Style:
RND PIN-SKT
Current Rating:
1 A
Device Socket Type:
IC SOCKET
Device Type Used On:
DIP8
Housing Material:
PLASTIC
JESD-609 Code:
e0
Mating Contact Pitch:
0.1 inch
Mounting Style:
STRAIGHT
Number of Contacts:
8
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
0.30000000000000004 mm
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER

614-93-308-31-012000 Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-1.5 in-lbs (0.056-0.169 Nm) to ensure secure connections without damaging the terminals.
Yes, the 614-93-308-31-012000 connector is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for mounting and securing the connector to ensure reliable performance.
The connector is rated for operation in temperatures ranging from -55°C to 125°C and can withstand humid environments, but it's essential to follow the manufacturer's guidelines for environmental considerations and potential derating.
The 614-93-308-31-012000 connector is designed to accommodate wire sizes up to 20 AWG (0.5 mm²). Using larger wire sizes may compromise the connection reliability.
The connector is rated for currents up to 3A per contact, but it's essential to consider the overall system design, wire sizing, and thermal management to ensure reliable operation in high-current applications.

Trust Checks

Community Provided

System Verified

Community Approved

614-93-308-31-012000 Overview

Use the download button to access the 614-93-308-31-012000 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 614-9, or try a keyword search, such as Sockets and Chip Carriers
