The recommended PCB footprint for the 615008140621 can be found in the Wurth Elektronik's 'Layout Recommendations' document, which provides detailed information on the component's land pattern and solder mask requirements.
To ensure reliable soldering of the 615008140621, follow the recommended soldering profile and temperature guidelines provided in the datasheet. Additionally, use a solder with a melting point below 260°C and ensure the PCB is clean and free of oxidation.
The maximum operating temperature range for the 615008140621 is -40°C to +125°C, as specified in the datasheet. However, it's essential to note that the component's performance may degrade at extreme temperatures, and derating may be necessary for high-reliability applications.
The 615008140621 is designed to withstand moderate vibration levels. However, for high-vibration environments, it's recommended to consult with Wurth Elektronik's application engineers to determine the component's suitability and potential modifications to the PCB design.
To prevent ESD damage to the 615008140621, follow proper handling and storage procedures, such as using ESD-protective packaging and wrist straps. Additionally, design the PCB with ESD protection in mind, including the use of ESD-protection diodes and resistors.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
615008140621 Overview

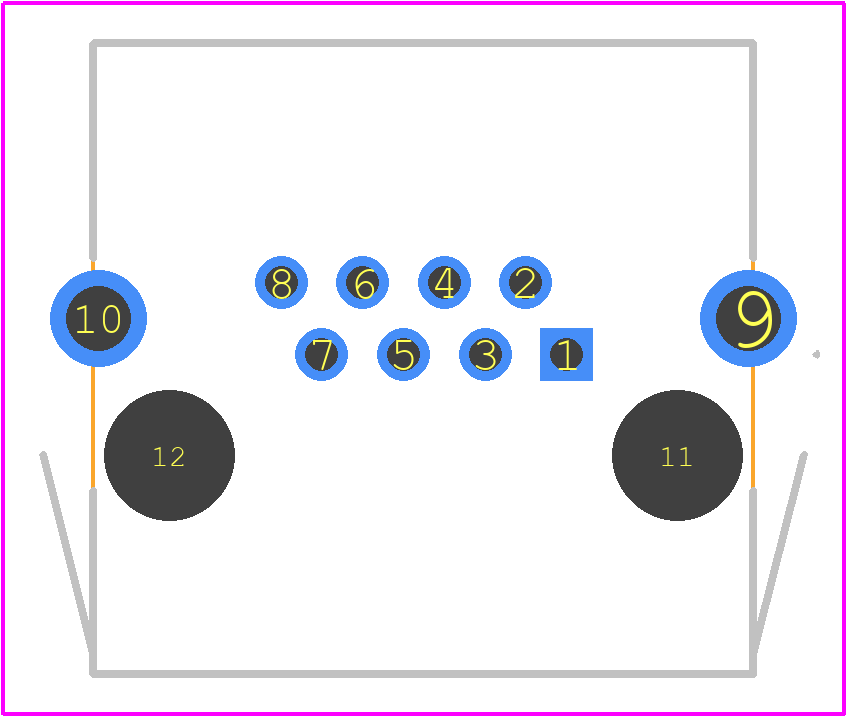

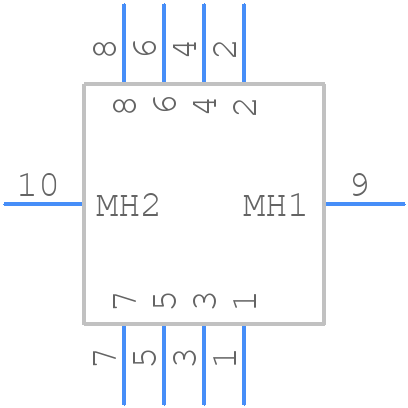

Use the download button to access the 615008140621 schematic symbol, PCB footprint, and 3D model.
