615016137621 - Würth Elektronik

Description: WR-MJ_8P8C_THT_Horizontal ModularJack_8P8C_THT_Horizontal_Shielded_Tab Down

Download 615016137621 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

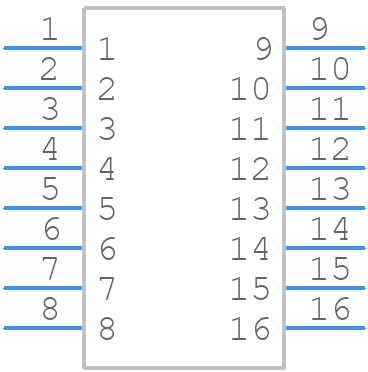

615016137621 - Würth Elektronik - PCB symbol
click to zoom
PCB Footprints

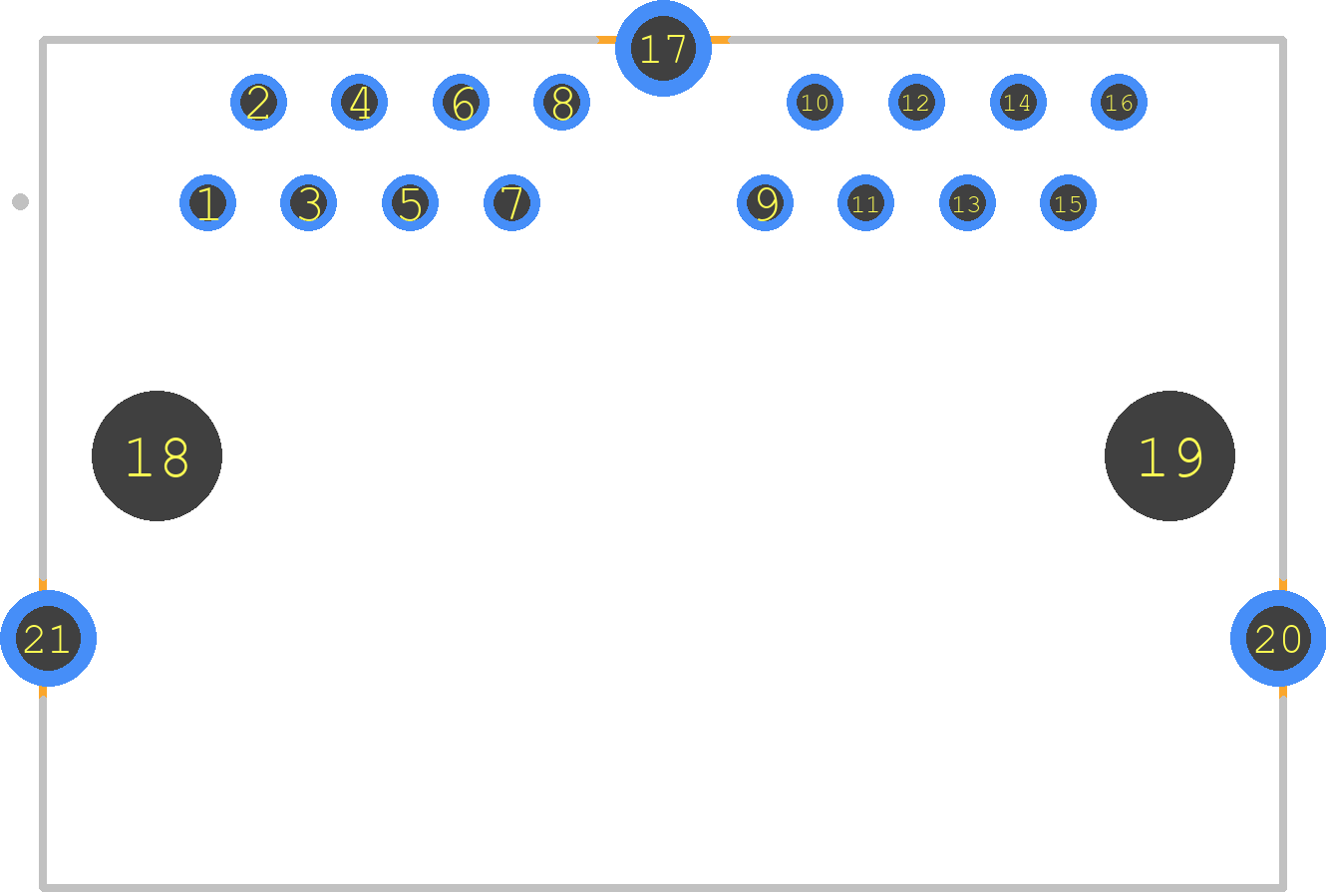

615016137621 - Würth Elektronik PCB footprint - Other - Other - WR-MJ DUAL MODULAR JACK
click to zoom
3D Models
615016137621 - Würth Elektronik - 3D model - Other - WR-MJ DUAL MODULAR JACK
click to zoom

615016137621 Details

  • Manufacturer Part Number:

    615016137621

  • Brand Name:

    Wurth Electronik

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Wurth Elektronik

  • YTEOL:

    15

  • Additional Feature:

    ROHS COMPLIANT

  • Board Mounting Option:

    SPLIT BOARD LOCK

  • Body Breadth:

    0.531 inch

  • Body Depth:

    0.837 inch

  • Body Length:

    1.225 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    TELCOM, MODULAR

  • Dielectric Withstanding Voltage:

    1000VAC V

  • Durability:

    500 Cycles

  • Insulation Resistance:

    500000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e4

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Contact Pattern:

    STAGGERED

  • Rated Current (Signal):

    1.5 A

  • Reference Standard:

    UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    BRONZE

  • Terminal Length:

    0.126 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    16

615016137621 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the 615016137621 can be found in the Wurth Elektronik's PCB Library or in the component's datasheet. It is essential to follow the recommended footprint to ensure proper assembly and to prevent any potential thermal or electrical issues.
  • To prevent damage, it is recommended to handle the 615016137621 component by the body or the tabs, avoiding touching the pins or the electrical contacts. It is also essential to follow proper electrostatic discharge (ESD) precautions when handling the component.
  • The thermal resistance of the 615016137621 component can be found in the component's datasheet or in Wurth Elektronik's thermal management application notes. It is essential to consider the thermal resistance when designing the PCB layout and thermal management system.
  • The 615016137621 component is designed to withstand certain levels of vibration, but it is essential to consult Wurth Elektronik's application notes and the component's datasheet to determine the maximum vibration levels it can withstand. Additional mechanical fixation or potting may be required in high-vibration environments.
  • The 615016137621 component meets various safety and regulatory standards, such as UL, IEC, and RoHS. It is essential to consult Wurth Elektronik's documentation and the component's datasheet to ensure compliance with the required standards and regulations.
