6160.0002 - SCHURTER

Description: CAD-Model shows variation PCB terminal and flange with through holes

Download 6160.0002 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
6160.0002 - SCHURTER - PCB symbol
click to zoom
PCB Footprints

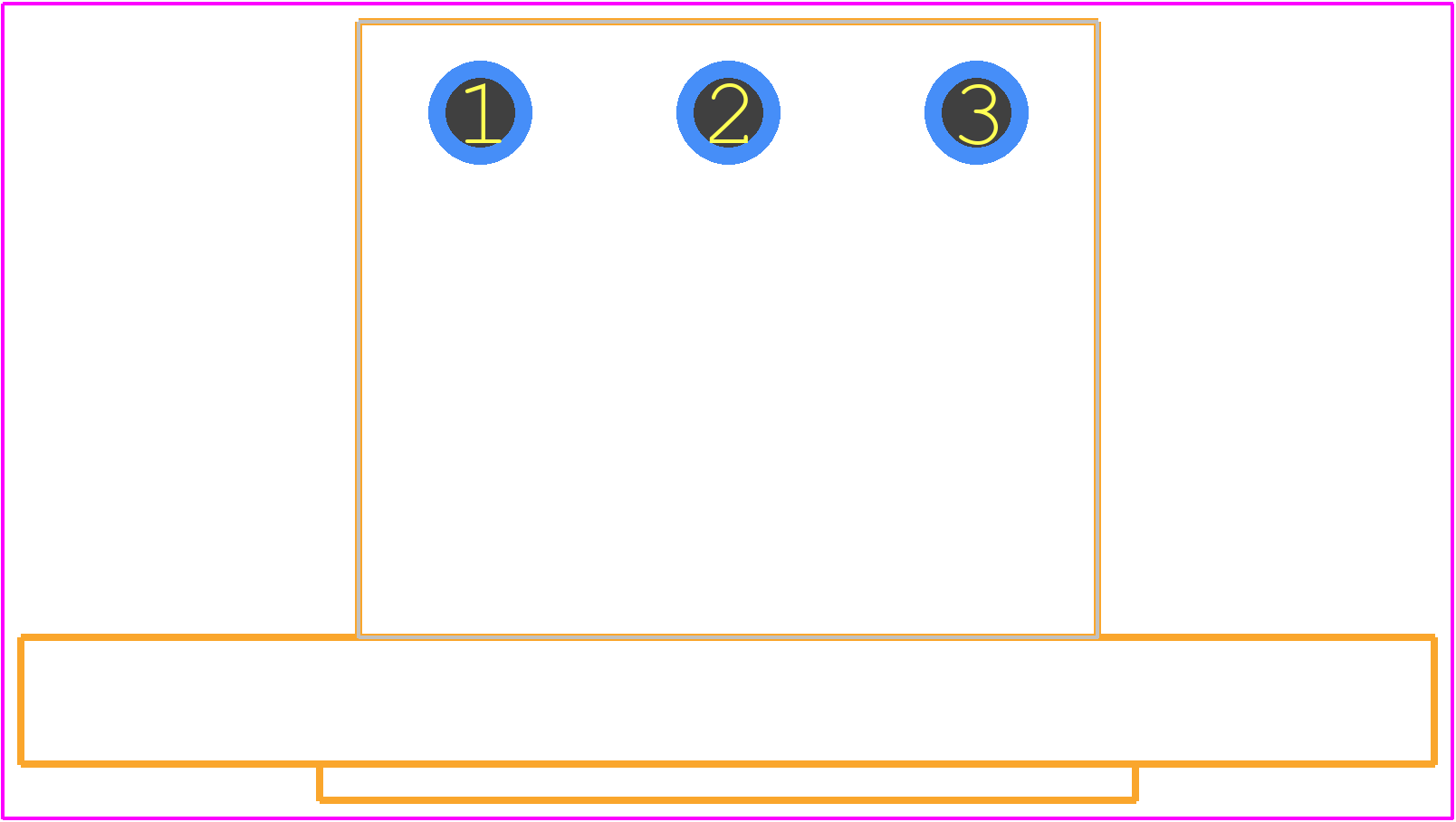

6160.0002 - SCHURTER PCB footprint - Other - Other - 6160.0002-2
click to zoom
3D Models
6160.0002 - SCHURTER - 3D model - Other - 6160.0002-2
click to zoom

6160.0002 Details

  • Manufacturer Part Number:

    6160.0002

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Schurter Electronic Components

  • YTEOL:

    6

  • Additional Feature:

    STANDARDS: IEC/EN 60320-1/C6, UL 94V-0; UL 498; CSA C22.2; VDE

  • Connector Type:

    MAINS POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • IEC Conformance:

    YES

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    2.5A, 250VAC

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mounting Type:

    PANEL

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    QUICK CONNECT

  • Total Number of Contacts:

    3

6160.0002 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type.
  • No, the 6160.0002 is designed for up to 32V DC and 250V AC applications. Using it with higher voltage ratings may compromise safety and reliability.
  • The 6160.0002 is designed for use with 5x20mm fuses, but it may not be compatible with all types of fuses. Check the datasheet or consult with Schurter support for specific fuse compatibility.
  • The operating temperature range for the 6160.0002 is -40°C to 85°C, but this may vary depending on the specific application and environment.
  • The 6160.0002 is designed for general-purpose applications. For high-reliability or safety-critical applications, consider using a fuse holder with specific certifications (e.g., IEC 60127-2) and consult with Schurter support for guidance.
