6160.0003 - SCHURTER

Description: CAD-Model shows variation Appliance Inlet, insert mounting, with or without retaining bracket , front or rear side and PCB terminal

Download 6160.0003 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
6160.0003 - SCHURTER - PCB symbol
click to zoom
PCB Footprints

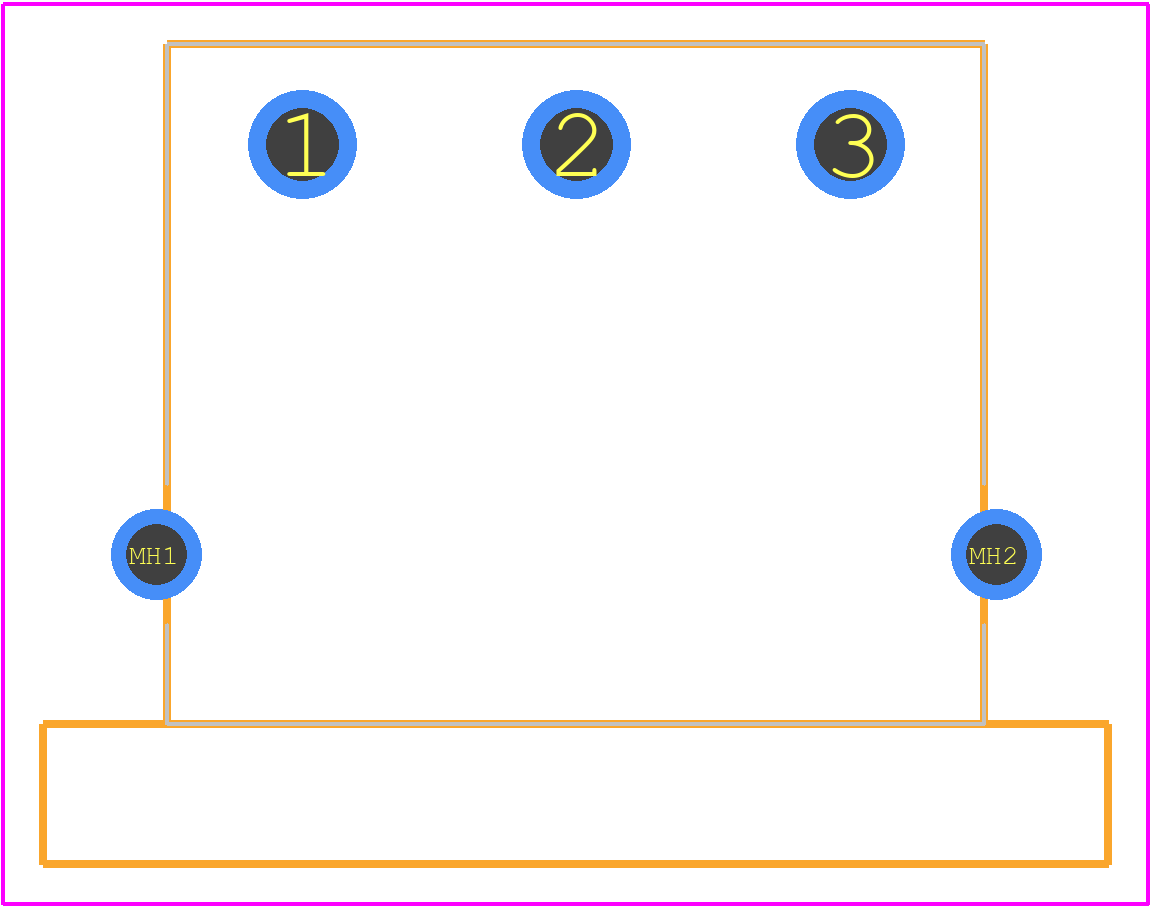

6160.0003 - SCHURTER PCB footprint - Other - Other - 6160.0003-1
click to zoom
3D Models
6160.0003 - SCHURTER - 3D model - Other - 6160.0003-1
click to zoom

6160.0003 Details

  • Manufacturer Part Number:

    6160.0003

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    10 Weeks, 5 Days

  • Manufacturer:

    Schurter Electronic Components

  • YTEOL:

    6

  • Additional Feature:

    STANDARDS: IEC/EN 60320-1/C6; UL 498; CSA C22.2; VDE

  • Connector Type:

    MAINS POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • IEC Conformance:

    YES

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    2.5A, 250VAC

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SCREW

  • Total Number of Contacts:

    3

6160.0003 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type.
  • No, the 6160.0003 is rated for up to 32V DC, and using it with higher voltage applications may compromise its safety and reliability.
  • The 6160.0003 is designed for use with 5x20mm fuses, but it may not be compatible with all types of fuses. Check the datasheet or consult with Schurter support for specific compatibility information.
  • The operating temperature range for the 6160.0003 is -40°C to 85°C, but this may vary depending on the specific application and environment.
  • The 6160.0003 is designed for general-purpose applications, but it may not be suitable for high-vibration or high-shock environments. Consult with Schurter support or consider using a more ruggedized fuse holder for such applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

6160.0003 Overview

Use the download button to access the 6160.0003 schematic symbol, PCB footprint, and 3D model.
