Part Image

61900311021 - Würth Elektronik

Description: Wurth Elektronik WR-WTB, 2.54mm Pitch, 3 Way, 1 Row, Right Angle PCB Header, Through Hole

Download ECAD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

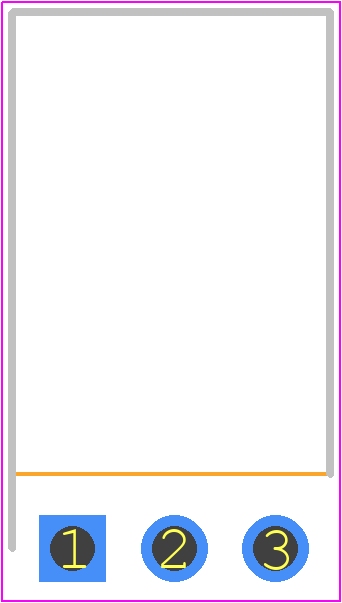

61900311021 - Würth Elektronik PCB footprint - Header, Shrouded - Right Angle PTH Box - Header, Shrouded - Right Angle PTH Box - 61900311021
click to zoom

3D Models

61900311021 - Würth Elektronik  - 3D model - Header, Shrouded - Right Angle PTH Box - 61900311021
click to zoom
  • Datasheet Download Datasheet
  • Stock & Prices $ Check Stock & Prices
  • Part Number 61900311021
  • Manufacturer Würth Elektronik
  • Pin Count 3
  • Part Category Connector
  • Package Category Header, Shrouded - Right Angle PTH Box
  • Footprint Name Header, Shrouded - Right Angle PTH Box - 61900311021
  • Released Date Jul 9, 2020
  • Pinout / Pin List Click Here (Member Only)

61900311021 Details

  • Manufacturer Part Number:

    61900311021

  • Brand Name:

    Wurth Electronik

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Wurth Elektronik

  • Risk Rank:

    1.78

  • Samacsys Modified On:

    2020-07-10 06:25:43

  • YTEOL:

    15

  • Additional Feature:

    ROHS COMPLIANT

  • Body Breadth:

    0.228 inch

  • Body Depth:

    0.516 inch

  • Body Length:

    0.301 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    SN

  • Contact Finish Termination:

    TIN OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    COPPER ALLOY

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    SQ PIN-SKT

  • Dielectric Withstanding Voltage:

    1000VAC V

  • Durability:

    25 Cycles

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    BEIGE

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Reliability:

    COMMERCIAL

  • Subcategory:

    Headers and Edge Type Connectors

  • Terminal Length:

    0.134 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    3
