61PC5F - Switchcraft

Description: Switchcraft 61PC Series, 5 Pole Right Angle Din Socket, 3A, 34 V dc

Download 61PC5F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
61PC5F - Switchcraft - PCB symbol
click to zoom
PCB Footprints

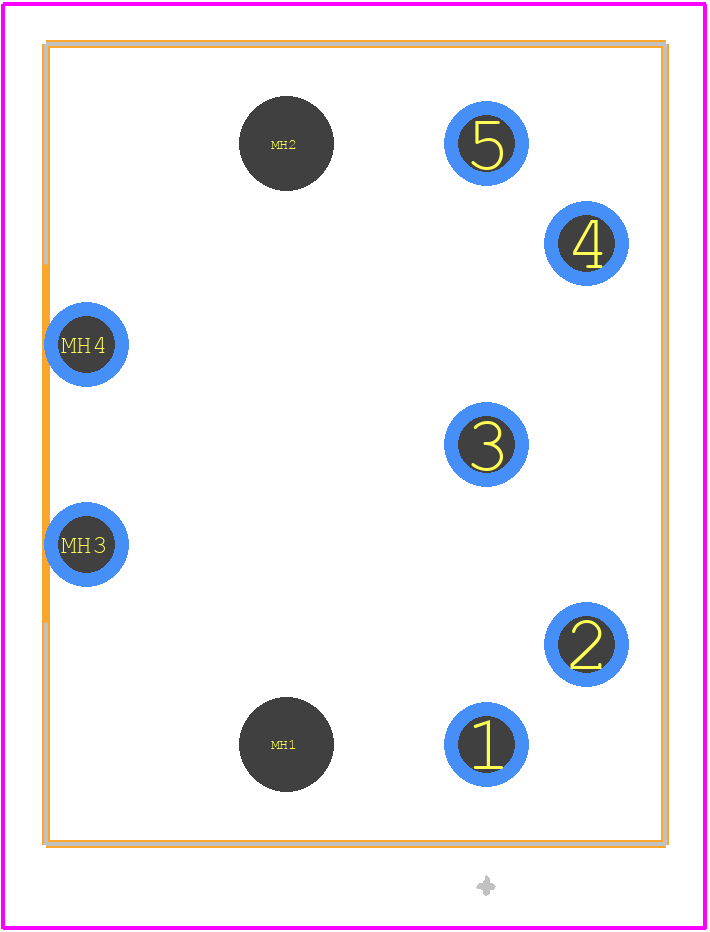

61PC5F - Switchcraft PCB footprint - Other - Other - 61PC5F-1
click to zoom
3D Models
61PC5F - Switchcraft - 3D model - Other - 61PC5F-1
click to zoom

61PC5F Details

  • Manufacturer Part Number:

    61PC5F

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Switchcraft Conxall

  • YTEOL:

    7

  • Additional Feature:

    POLARIZED

  • Body Breadth:

    0.827 inch

  • Body Depth:

    0.52 inch

  • Body Length:

    0.787 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    DIN CONNECTOR

  • Contact Gender:

    FEMALE

  • Contact Pitch Circle Diameter:

    7 mm

  • Contact Style:

    BELLOWED TYPE

  • DIN Conformance:

    YES

  • EMI Shielded:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    PLASTIC

  • MIL Conformance:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Option:

    GENERAL PURPOSE

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    3 A

  • Terminal Length:

    0.138 inch

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    5

61PC5F Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the 61PC5F connector is 10-12 in-lbs (1.1-1.4 Nm).
  • Yes, the 61PC5F connector is suitable for outdoor use, as it has a sealed construction and meets IP67 standards for environmental protection.
  • Yes, the 61PC5F connector is designed to withstand high-vibration environments, making it suitable for use in applications such as aerospace, automotive, and industrial control systems.
  • The 61PC5F connector has an operating temperature range of -55°C to 125°C (-67°F to 257°F).
  • Yes, the 61PC5F connector is designed to be compatible with mil-spec connectors, making it suitable for use in military and defense applications.
