620L3I010M00000R - CTS

Description: CTS Model 620 is a low cost, ultra-low voltage clock oscillator supporting HCMOS output. Employing the latest IC technology, M620 has excellent stability and low phase jitter performance. It is also a very compact frequency control solution, coming in a miniaturized package.

Download 620L3I010M00000R Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 620L3I010M00000R model

Email notifications will be applied after download.

Send part feedback

Symbol

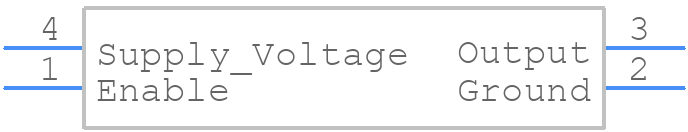

620L3I010M00000R - CTS - PCB symbol

PCB Footprints

620L3I010M00000R - CTS PCB footprint - Other - Other - 620_Series

3D Models

620L3I010M00000R - CTS - 3D model - Other - 620_Series

Datasheet Download Datasheet
Stock & Prices Price & Stock for 620L3I010M00000R
Part Number 620L3I010M00000R
Manufacturer CTS
Pin Count 4
Part Category Crystal or Oscillator
Package Category Other
Footprint Name Other - 620_Series
Released Date Mar 9, 2026
Last Modified Date Mar 9, 2026 6:01 PM UTC
Pinout / Pin List Click Here (Member Only)

620L3I010M00000R Details

Manufacturer Part Number:
620L3I010M00000R
Manufacturer:
CTS Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

620L3I010M00000R Overview

Use the download button to access the 620L3I010M00000R schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 620L3, or try a keyword search, such as Fixed Resistors
