62101021821 - Würth Elektronik

Description: WR-PHD 2.00 mm Dual SMT Socket Header 10 pins, dual row, straight, gold plating

Download 62101021821 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

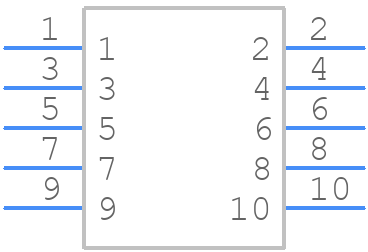

Symbol
62101021821 - Würth Elektronik - PCB symbol
click to zoom

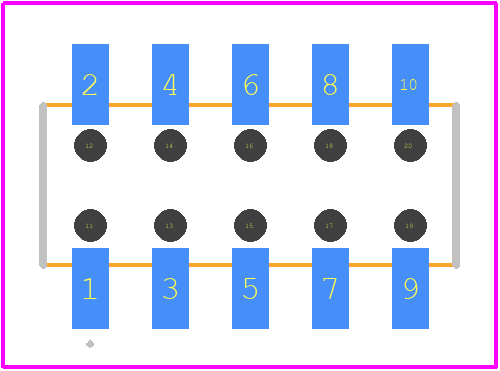

PCB Footprints
62101021821 - Würth Elektronik PCB footprint - Other - Other - 62101021821-2
click to zoom
3D Models
62101021821 - Würth Elektronik - 3D model - Other - 62101021821-2
click to zoom

62101021821 Details

  • Manufacturer Part Number:

    62101021821

  • Brand Name:

    Wurth Electronik

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Wurth Elektronik

  • YTEOL:

    15

  • Additional Feature:

    ROHS COMPLIANT

  • Body Breadth:

    0.157 inch

  • Body Depth:

    0.094 inch

  • Body Length:

    0.394 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    SQ PIN-SKT

  • Dielectric Withstanding Voltage:

    500VAC V

  • Filter Feature:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e4

  • Mating Contact Pitch:

    0.079 inch

  • Mating Contact Row Spacing:

    0.079 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    4.572 mm

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    2 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    2.0066 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    10

62101021821 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the 62101021821 can be found in the Wurth Elektronik's PCB Library or in the component's 3D model. It's essential to follow the recommended footprint to ensure proper assembly and to prevent thermal and electrical issues.
  • The 62101021821 has a thermal pad on the bottom side, which should be connected to a thermal via or a copper plane on the PCB to dissipate heat efficiently. Ensure that the thermal via or copper plane is connected to a heat sink or a large copper area to dissipate heat effectively.
  • The maximum operating temperature range for the 62101021821 is -40°C to +125°C. However, it's essential to note that the component's performance and reliability may degrade if operated at the extreme ends of this range.
  • The 62101021821 is designed to withstand moderate vibrations, but it's essential to ensure that the component is properly secured to the PCB and that the PCB is designed to withstand the expected vibration levels. Consult Wurth Elektronik's application notes for more information.
  • To ensure the 62101021821's EMC, follow Wurth Elektronik's guidelines for PCB layout, component placement, and shielding. Additionally, ensure that the component is properly decoupled and that the PCB is designed to minimize electromagnetic interference (EMI).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

62101021821 Overview

Use the download button to access the 62101021821 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 62101, or try a keyword search, such as Headers and Edge Type Connectors
