62201421821 - Würth Elektronik

Description: WR-PHD 1.27 mm Dual Socket Header 14 pins, dual row, straight, gold plating

Download 62201421821 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

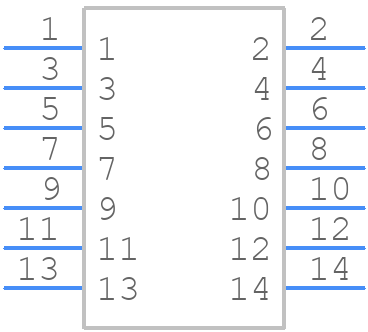

62201421821 - Würth Elektronik - PCB symbol
click to zoom
PCB Footprints

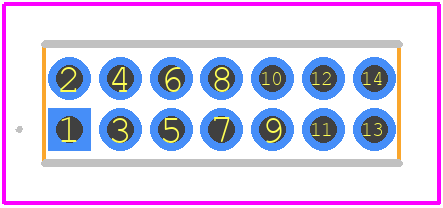

62201421821 - Würth Elektronik PCB footprint - Other - Other - 62201421821-2
click to zoom
3D Models
62201421821 - Würth Elektronik - 3D model - Other - 62201421821-2
click to zoom

62201421821 Details

  • Manufacturer Part Number:

    62201421821

  • Brand Name:

    Wurth Electronik

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Wurth Elektronik

  • YTEOL:

    15

  • Additional Feature:

    ROHS COMPLIANT

  • Body Breadth:

    0.118 inch

  • Body Depth:

    0.177 inch

  • Body Length:

    0.378 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    SQ PIN-SKT

  • Dielectric Withstanding Voltage:

    500VAC V

  • Filter Feature:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e4

  • Mating Contact Pitch:

    0.05 inch

  • Mating Contact Row Spacing:

    0.05 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    1.27 mm

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    1 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.087 inch

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    14

62201421821 Frequently Asked Questions (FAQs)

  • Wurth Elektronik provides a recommended PCB layout and land pattern in their application notes and whitepapers, which can be found on their website. It's essential to follow these guidelines to ensure proper assembly and reliability.
  • The datasheet provides thermal resistance values, but it's crucial to consider the component's thermal management in the overall system design. This may involve using thermal pads, heat sinks, or other cooling mechanisms to ensure the component operates within its specified temperature range.
  • Wurth Elektronik provides recommended soldering conditions, including temperature profiles and soldering times, in their application notes or on their website. It's essential to follow these guidelines to ensure reliable assembly and prevent damage to the component.
  • Wurth Elektronik provides guidance on EMC considerations in their application notes or on their website. It's essential to consider the component's EMC characteristics and take necessary measures to ensure compliance with relevant standards and regulations.
  • The datasheet may not explicitly state the MSL, but Wurth Elektronik provides this information in their application notes or on their website. It's essential to handle the component according to its MSL to prevent damage during storage and assembly.
