Wurth Elektronik provides a recommended PCB layout in their application notes, which includes guidelines for pad size, spacing, and thermal vias to ensure optimal thermal performance and signal integrity.
The 62302021021 has a thermal pad on the bottom, which should be connected to a thermal ground plane on the PCB to dissipate heat efficiently. Additionally, ensure good airflow around the component and consider using a heat sink if necessary.
The 62302021021 is rated for operation from -40°C to +125°C, but derating may be necessary for high-power applications or extreme environmental conditions.
Wurth Elektronik recommends following the IEC 60068-2-6 standard for vibration testing. The component's design and manufacturing process are intended to withstand moderate vibrations, but extreme vibration environments may require additional mechanical support or specialized testing.
Follow Wurth Elektronik's guidelines for PCB layout, component placement, and shielding to minimize electromagnetic interference (EMI). Additionally, ensure that the component is properly decoupled and filtered to prevent electromagnetic radiation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
62302021021 Overview

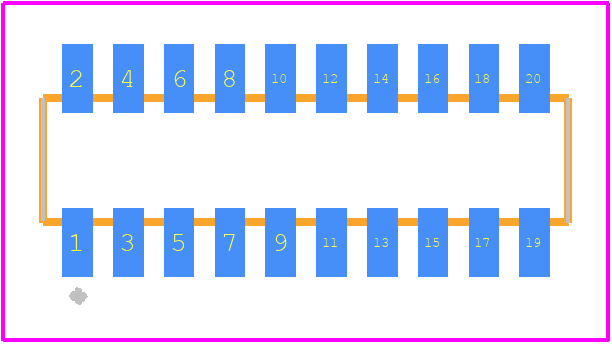

Use the download button to access the 62302021021 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 62302,
or try a keyword search, such as Headers and Edge Type Connectors
