62650-1 - TE Connectivity

Description: Contact Features: Contact Mating Area Plating Material Thickness 3.81 MICM | Contact Underplating Material Thickness 100 MICIN | PCB Contact Termination Area Plating Material Thickness 3.81 MICM | Mating Tab Thickness .032 INCH | Terminal Plating Material Tin | Mating Tab Thickness .81 MM | Mating Tab Width 6.35 MM | Contact Underplating Material Brass | Mating Tab Width .25 INCH | Contact Mating Area Plating Material Thickness 150 MICIN | PCB Contact Termination Area Plating Material Thickness 150 MICIN |

Download 62650-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
62650-1 - TE Connectivity - PCB symbol
click to zoom

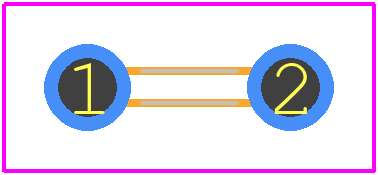

PCB Footprints
62650-1 - TE Connectivity PCB footprint - Other - Other - 62650-1-1
click to zoom
3D Models
62650-1 - TE Connectivity - 3D model - Other - 62650-1-1
click to zoom

62650-1 Details

  • Manufacturer Part Number:

    62650-1

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.87

  • Safety Approval:

    UL

  • Terminal Gender:

    MALE

  • Terminal and Terminal Block Type:

    TAB TERMINAL

62650-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 Nm to 1.5 Nm, but it's essential to consult the TE Connectivity application notes for specific guidance.
  • Yes, the 62650-1 connector is designed to withstand vibrations and is suitable for use in high-vibration environments, but it's crucial to ensure proper mounting and securement.
  • The operating temperature range for the 62650-1 connector is -40°C to 125°C, but it's essential to consult the datasheet for specific temperature ratings for individual components.
  • The 62650-1 connector is designed to be resistant to harsh environments, but it's crucial to consult the TE Connectivity application notes and datasheet for specific guidance on environmental considerations.
  • The recommended wire size and type for use with the 62650-1 connector is 24 AWG to 18 AWG, and it's essential to consult the TE Connectivity application notes for specific guidance on wire selection.
