Wurth Elektronik provides a recommended PCB layout in their application notes and layout recommendations documents, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance, minimal electromagnetic interference (EMI), and reduced radiation.
The 62701421621 has a maximum operating temperature of 125°C. To ensure proper thermal management, it's recommended to provide a sufficient heat sink, use thermal vias, and maintain a reasonable distance from other heat-generating components. Wurth Elektronik also provides thermal resistance and power dissipation data in the datasheet to aid in thermal design.
Wurth Elektronik recommends following the JEDEC J-STD-020D.1 standard for soldering. The component is compatible with lead-free soldering processes, and it's essential to use a soldering profile that ensures a peak temperature of 260°C (max) and a dwell time of 30-45 seconds (max).
To ensure EMC, it's recommended to follow Wurth Elektronik's guidelines for PCB layout, component placement, and shielding. Additionally, consider using electromagnetic shielding materials, such as copper foil or metal cans, to reduce radiation and susceptibility to external interference.
The 62701421621 has an MSL rating of 3, according to the IPC/JEDEC J-STD-020 standard. This means the component can withstand a maximum exposure of 168 hours at 30°C and 60% relative humidity before soldering.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
62701421621 Overview

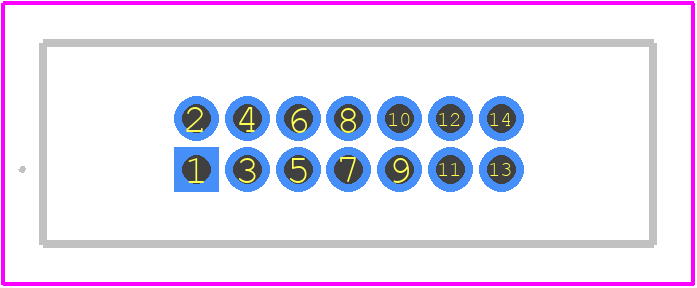

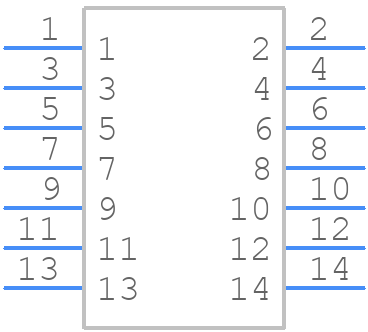

Use the download button to access the 62701421621 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 62701,
or try a keyword search, such as Headers and Edge Type Connectors
