Wurth Elektronik provides a recommended PCB layout and land pattern in their application notes and layout recommendations documents, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize signal integrity issues.
The 62731020621 component has a maximum operating temperature of 125°C. To ensure proper thermal management, it's recommended to provide a thermal pad on the PCB, use thermal vias, and consider heat sinks or thermal interface materials if necessary. Additionally, ensure good airflow around the component and avoid blocking air vents or heat sinks.
Wurth Elektronik recommends following the IPC-J-STD-020D standard for soldering and rework conditions. The component is rated for a maximum of 3 reflow cycles, and the recommended soldering temperature is between 235°C to 245°C. It's essential to follow these guidelines to avoid damaging the component during assembly or rework.
The 62731020621 component is a high-frequency component, and EMI shielding and filtering are crucial to ensure signal integrity and minimize electromagnetic interference. Wurth Elektronik recommends using EMI shielding cans or filters, and following proper PCB layout and design guidelines to minimize radiation and susceptibility.
The 62731020621 component has an MSL rating of 3, which means it's sensitive to moisture and requires proper handling and storage. It's recommended to store the component in a dry, nitrogen-filled package, and to follow the IPC/JEDEC J-STD-033 standard for handling and storage of moisture-sensitive devices.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
62731020621 Overview

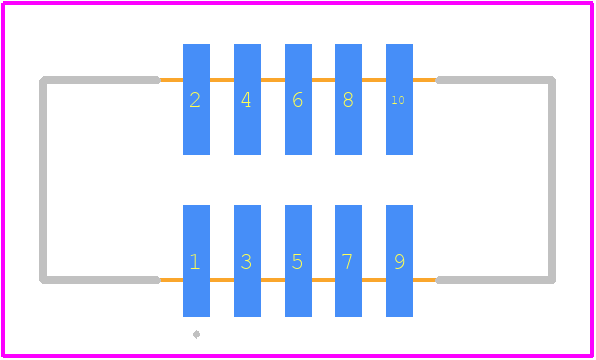

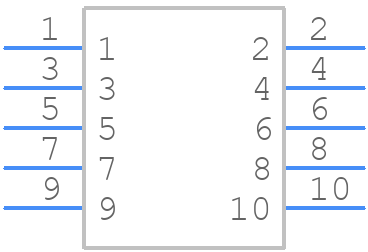

Use the download button to access the 62731020621 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 62731,
or try a keyword search, such as Headers and Edge Type Connectors
