62A22-02-P - Grayhill

Description: Rotary Encoder Optical 16 Quadrature (Incremental) User Selectable

Download 62A22-02-P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

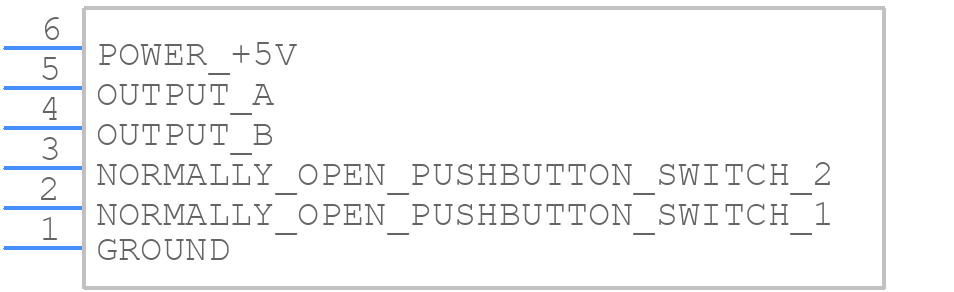

62A22-02-P - Grayhill - PCB symbol
click to zoom
PCB Footprints
62A22-02-P - Grayhill PCB footprint - Other - Other - 62A22-02-P-6
click to zoom
3D Models
62A22-02-P - Grayhill - 3D model - Other - 62A22-02-P-6
click to zoom

62A22-02-P Details

  • Manufacturer Part Number:

    62A22-02-P

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Grayhill Inc

  • YTEOL:

    8

  • Configuration:

    SINGLE, 2 CHANNELS

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    ABSOLUTE ROTARY ENCODER

  • Terminal Finish:

    Tin (Sn)

62A22-02-P Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.0 Nm (4-8 in-lbs).
  • Yes, the 62A22-02-P is designed to withstand vibrations up to 10G (10-2000 Hz) and can be used in high-vibration environments.
  • The 62A22-02-P has an IP67 rating, which means it is sealed against water and dust ingress, but it's not suitable for continuous immersion in water.
  • The operating temperature range for the 62A22-02-P is -40°C to 85°C (-40°F to 185°F).
  • The 62A22-02-P is not certified for use in hazardous locations, such as explosive atmospheres. Consult Grayhill Inc for custom solutions.
