The recommended torque for assembling the 62P22-L4 switch is 2-4 in-lbs (0.2-0.4 Nm) to ensure proper seating of the switch shaft and to prevent damage to the internal components.
Yes, the 62P22-L4 switch is designed to withstand high-vibration environments. It has a rugged construction and is tested to meet the requirements of MIL-PRF-39012. However, it's recommended to consult with Grayhill's application engineers to ensure the switch meets the specific vibration requirements of your application.
The 62P22-L4 switch is rated for operation in temperatures ranging from -55°C to 125°C (-67°F to 257°F). However, the switch's performance and lifespan may be affected by extreme temperatures, so it's recommended to consult with Grayhill's application engineers for specific temperature-related requirements.
The 62P22-L4 switch is designed to meet the requirements of IP67, which means it can withstand temporary immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's recommended to consult with Grayhill's application engineers to ensure the switch meets the specific environmental requirements of your application.
The 62P22-L4 switch should be cleaned with a soft, dry brush or a lint-free cloth to remove any debris or contaminants. Avoid using harsh chemicals, solvents, or abrasive materials that may damage the switch's components or compromise its performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
62P22-L4 Overview

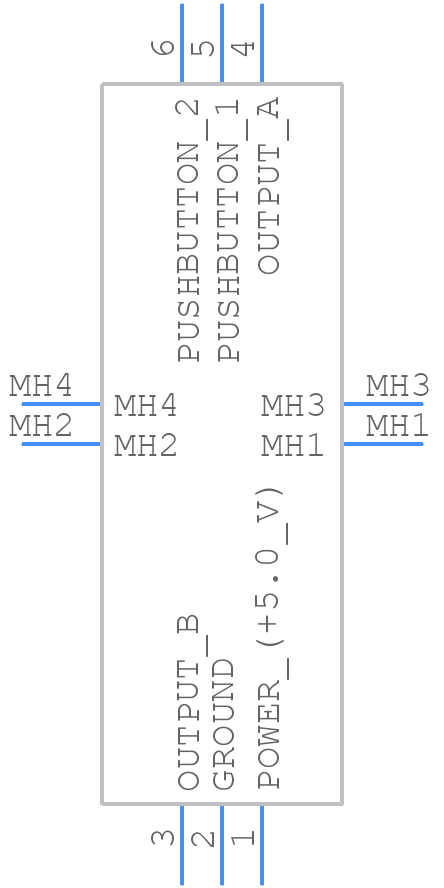

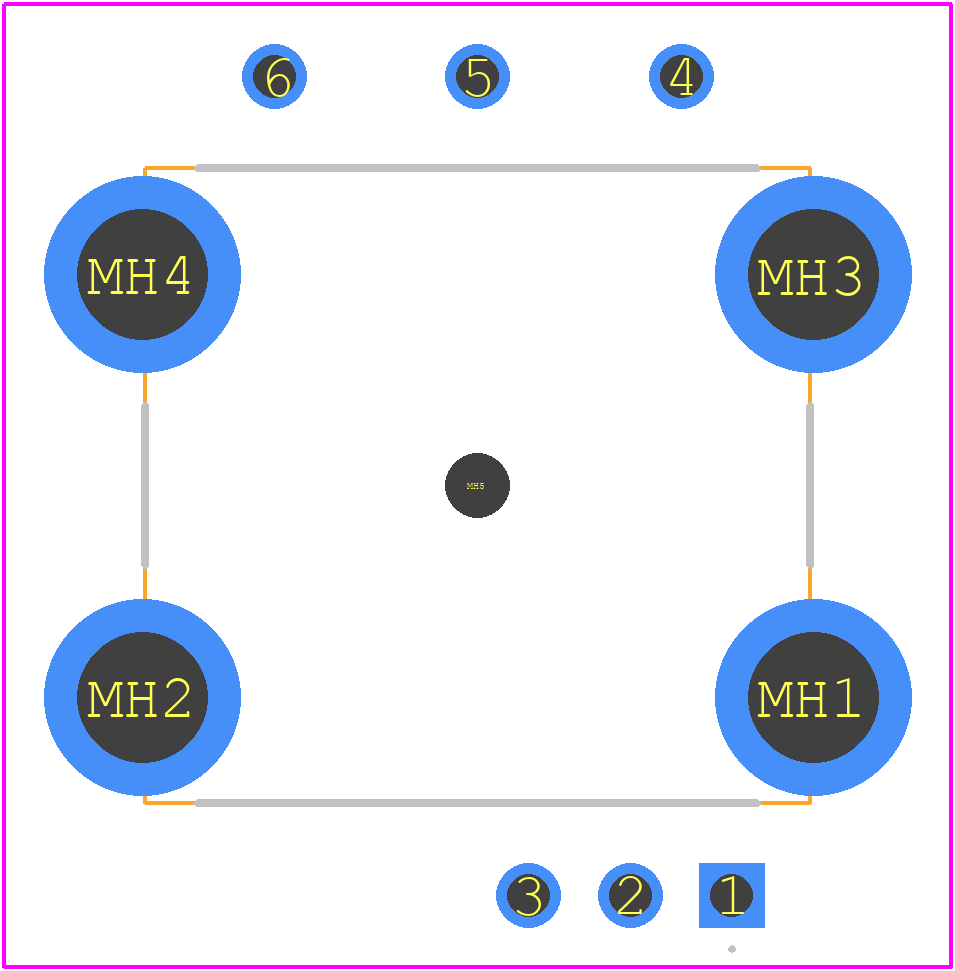

Use the download button to access the 62P22-L4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 62P22,
or try a keyword search, such as Optical Position Encoders
