- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 62PC7F
- Part Number 62PC7F
- Manufacturer Switchcraft
- Pin Count 11
- Part Category Connector
- Package Category Other
- Footprint Name Other - 62PC7F-1
- Released Date Dec 1, 2019
- Last Modified Date Dec 26, 2024 7:14 AM UTC
- Pinout / Pin List Click Here (Member Only)
62PC7F Details
-
Manufacturer Part Number:
62PC7F
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
USA
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.20
-
Manufacturer:
Switchcraft Conxall
-
YTEOL:
7
-
Additional Feature:
POLARIZED
-
Body Breadth:
0.827 inch
-
Body Depth:
0.61 inch
62PC7F Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5-1.0 in-lbs (0.056-0.113 Nm) to ensure secure connections.
-
Yes, the 62PC7F is designed to withstand high-vibration environments, making it suitable for use in industrial, aerospace, and transportation applications.
-
Yes, the 62PC7F is part of the Conxall series and is compatible with other connectors in the same series, allowing for flexibility in design and assembly.
-
The operating temperature range of the 62PC7F is -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of environments.
-
Yes, the 62PC7F is designed to be resistant to harsh environments, including high humidity and exposure to chemicals, making it suitable for use in industrial, marine, and outdoor applications.
Trust Checks
Expert Contribution
System Verified
Community Approved
62PC7F Overview

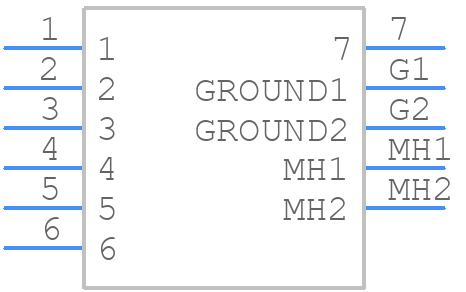

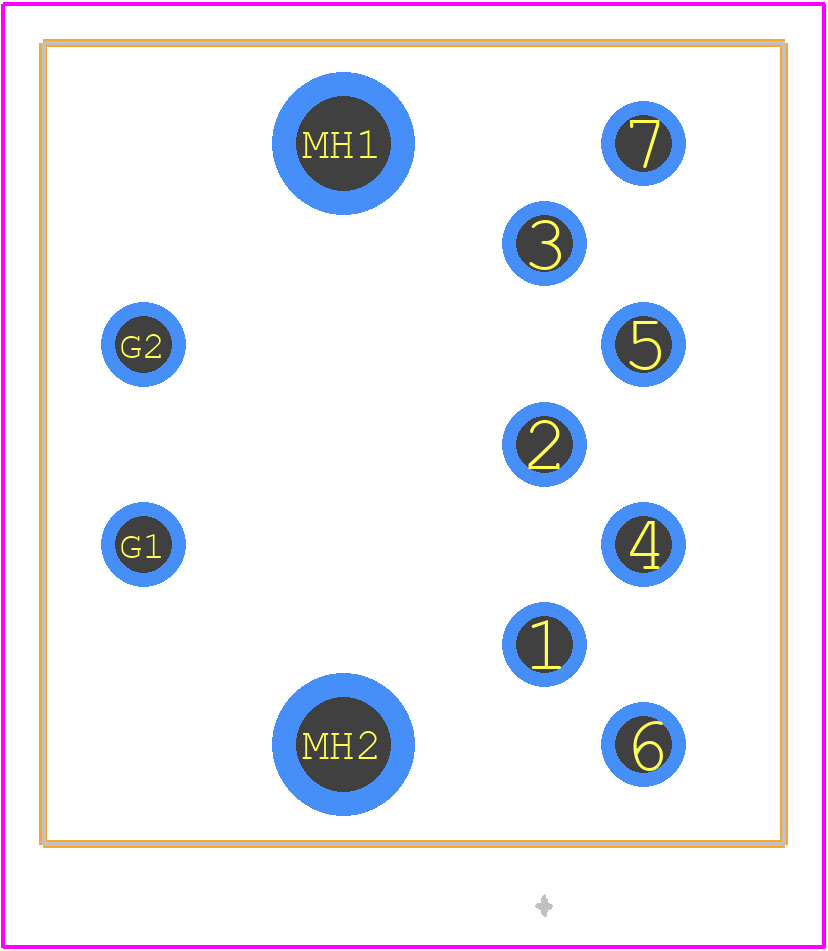

Use the download button to access the 62PC7F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 62PC7,
or try a keyword search, such as DIN Connectors
