62PC8FS - Switchcraft

Description: DIN Connectors 8P R/A SHLD CONN

Download 62PC8FS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

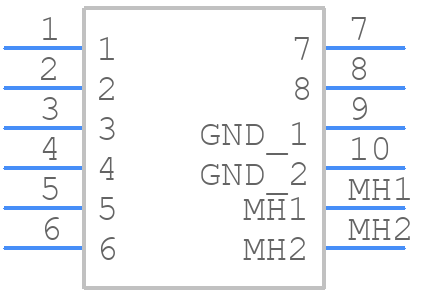

62PC8FS - Switchcraft - PCB symbol
click to zoom
PCB Footprints

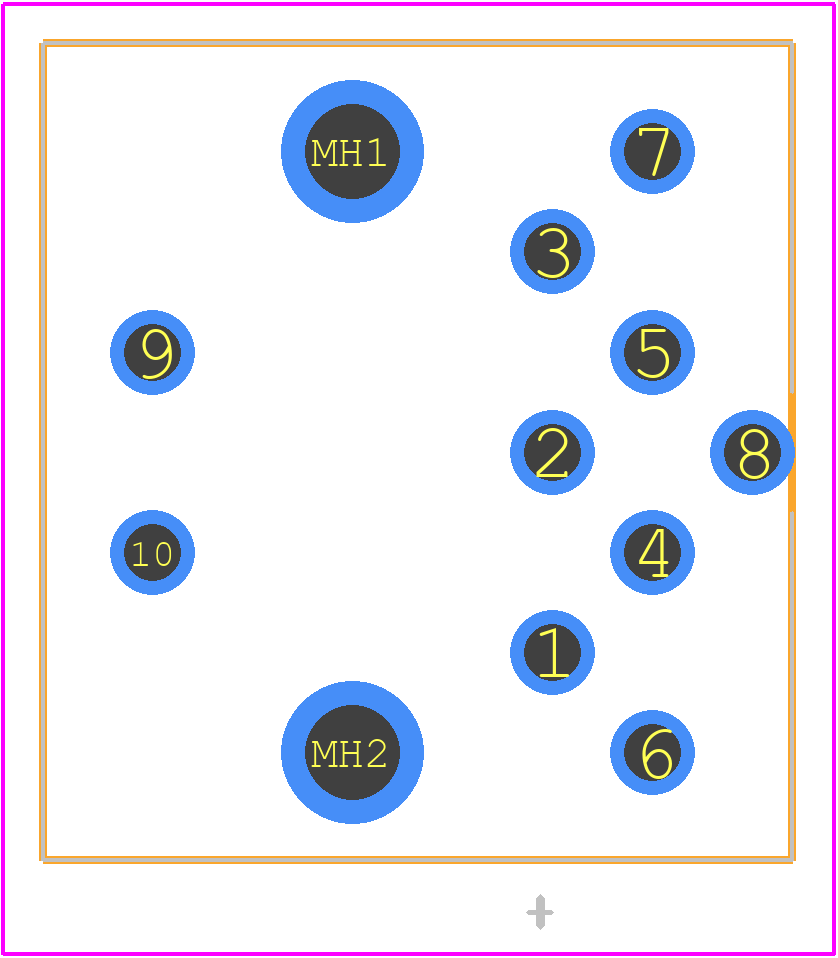

62PC8FS - Switchcraft PCB footprint - Other - Other - 62PC8FS-2
click to zoom
3D Models
62PC8FS - Switchcraft - 3D model - Other - 62PC8FS-2
click to zoom

62PC8FS Details

  • Manufacturer Part Number:

    62PC8FS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Switchcraft Conxall

  • YTEOL:

    7

  • Additional Feature:

    SHIELDED

  • Body Breadth:

    0.839 inch

  • Body Depth:

    0.61 inch

  • Body Length:

    0.803 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    DIN CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pitch Circle Diameter:

    7 mm

  • Contact Style:

    BELLOWED TYPE

  • DIN Conformance:

    YES

  • EMI Shielded:

    YES

  • IEC Conformance:

    NO

  • Insulator Material:

    PLASTIC

  • MIL Conformance:

    NO

  • Mounting Option 1:

    HOLE 0.1

  • Mounting Option 2:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Option:

    GENERAL PURPOSE

  • Polarization Key:

    POLARIZED

  • Terminal Length:

    0.138 inch

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

62PC8FS Frequently Asked Questions (FAQs)

  • The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the screws on the 62PC8FS connector.
  • Yes, the 62PC8FS connector is designed to withstand high-vibration environments and is suitable for use in applications with intense vibration.
  • Yes, the 62PC8FS connector is designed to meet the requirements of mil-spec wiring and is compatible with mil-spec cables and connectors.
  • The operating temperature range of the 62PC8FS connector is -55°C to 125°C (-65°F to 257°F).
  • Yes, the 62PC8FS connector is designed to withstand harsh environments, including high humidity and exposure to chemicals, and is suitable for use in industrial, aerospace, and defense applications.
