The recommended torque for assembling the switch is 2-3 in-lbs (0.2-0.3 Nm) to avoid damaging the switch or its components.
Yes, the 62S22-M5-P is designed to withstand vibrations up to 10 G's, making it suitable for use in high-vibration environments.
The switch is rated for operation in temperatures ranging from -20°C to 85°C (-4°F to 185°F) and can withstand humidity up to 95% RH. However, it's recommended to consult Grayhill's environmental testing reports for specific details.
The 62S22-M5-P has a mechanical life expectancy of 10,000 cycles, and an electrical life expectancy of 5,000 cycles, depending on the application and usage.
Yes, Grayhill offers customization options for the switch, including different shaft and bushing configurations. Contact Grayhill's sales team for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
62S22-M5-P Overview

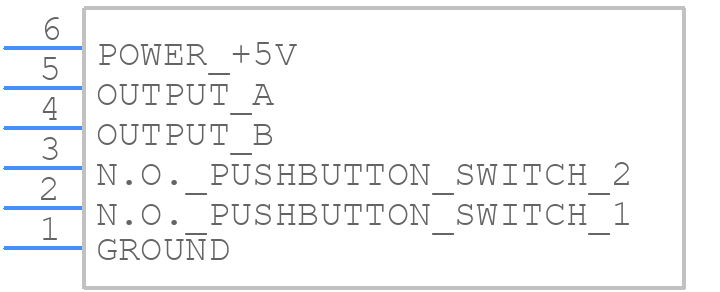

Use the download button to access the 62S22-M5-P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 62S22,
or try a keyword search, such as Optical Position Encoders
