6318573-4 - TE Connectivity

Description: Board-to-Board, 7 Position, 2.5 mm [.098 in] Centerline, Plug, 30 VDC, Right Angle, Printed Circuit Board, Power & Signal, DC Jack Connectors

Download 6318573-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
6318573-4 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

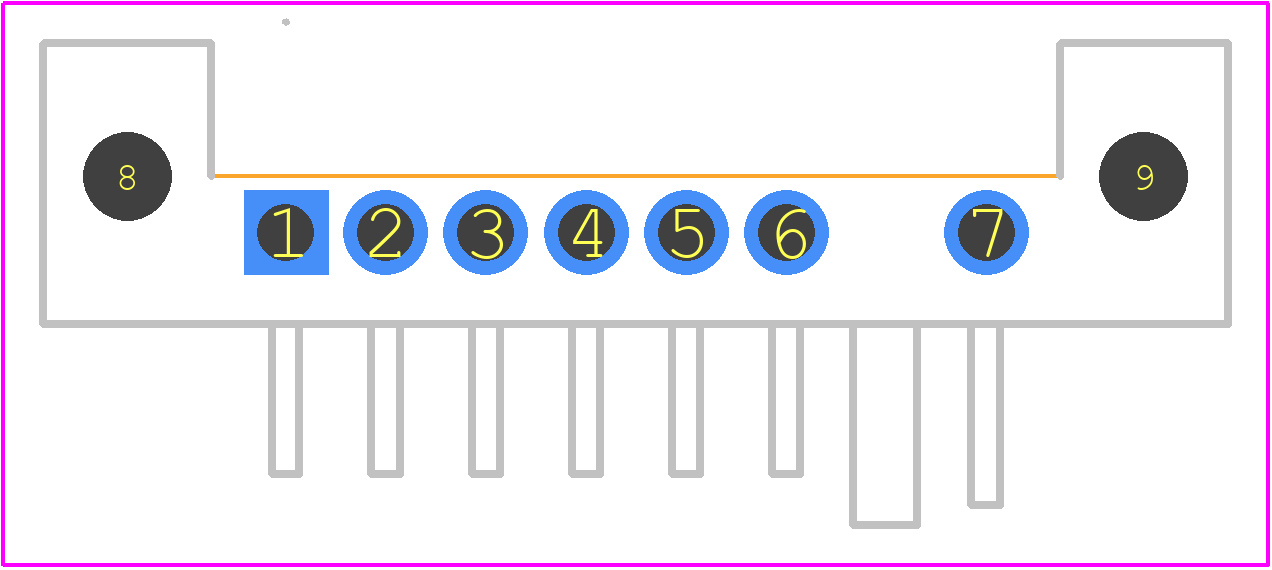

6318573-4 - TE Connectivity PCB footprint - Other - Other - 6318573-4-1
click to zoom
3D Models
6318573-4 - TE Connectivity - 3D model - Other - 6318573-4-1
click to zoom

6318573-4 Details

  • Manufacturer Part Number:

    6318573-4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    9 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9

  • Body/Shell Style:

    PLUG

  • Connector Type:

    PCB CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Gold Flash (Au) - with Nickel (Ni) barrier

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    6A

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -20 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    6 A

  • Rated Voltage:

    30 V

  • Terminal Pitch:

    2.5 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    7

6318573-4 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 6318573-4 connector is designed to withstand high-vibration environments, making it suitable for applications such as industrial automation, transportation, and aerospace.
  • The connector's materials are resistant to corrosion and can withstand exposure to harsh chemicals, but it's recommended to consult TE Connectivity's chemical resistance guide for specific chemical compatibility.
  • The operating temperature range for the 6318573-4 connector is -40°C to 125°C (-40°F to 257°F).
  • The 6318573-4 connector is rated for up to 3A per contact, making it suitable for moderate-current applications. For high-current applications, consider using a connector with a higher current rating.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

6318573-4 Overview

Use the download button to access the 6318573-4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 63185, or try a keyword search, such as Headers and Edge Type Connectors
