6339169-3 - TE Connectivity

Description: Body Features: Shield Material Copper Zinc Alloy | Connector Profile Standard | Shield Plating Material Nickel | PCB Ground Tab Location .18 INCH | Modular Jack Latch Orientation Standard - Latch Down | PCB Ground Tab Location 4.57 MM | Configuration Features: Number of Panel Ground Tabs 27 | Number of Positions 8 | Number of Loaded Positions 8 | Port Matrix Configuration 1 x 8 | Status Light Type Not Illuminated | Multiple Port Configuration Ganged | Connector Contact Density Standard | Port Configuration

Download 6339169-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
6339169-3 - TE Connectivity - PCB symbol
click to zoom

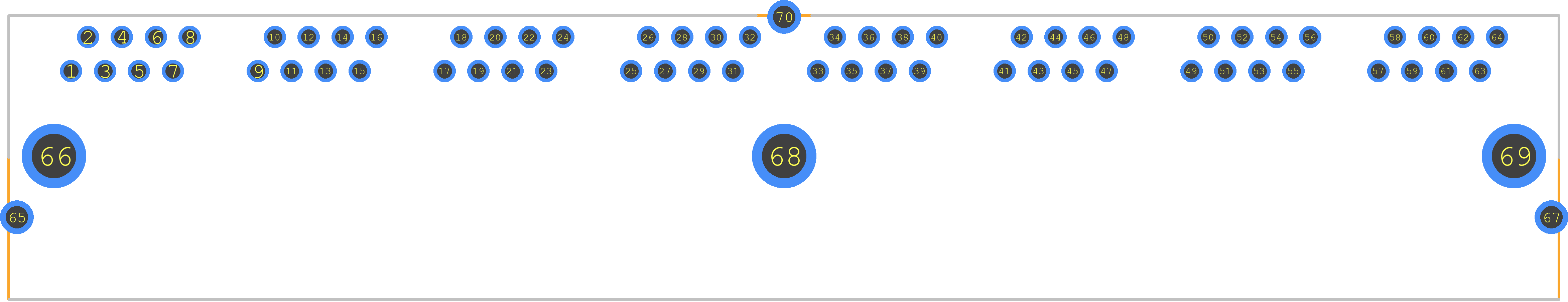

PCB Footprints
6339169-3 - TE Connectivity PCB footprint - Other - Other - 6339169-3
click to zoom
3D Models
6339169-3 - TE Connectivity - 3D model - Other - 6339169-3
click to zoom

6339169-3 Details

  • Manufacturer Part Number:

    6339169-3

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • Additional Feature:

    8 PORTS 8 POSITION EACH

  • Body/Shell Style:

    JACK

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    MATTE TIN

  • Contact Finish Termination:

    MATTE TIN

  • Contact Gender:

    FEMALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE-POLYESTER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    8

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    TIN LEAD

  • Shell Material:

    COPPER ALLOY

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    64

  • UL Flammability Code:

    94V-0

6339169-3 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 6339169-3 connector is designed to withstand high-vibration environments, making it suitable for use in applications such as industrial machinery, transportation, and aerospace.
  • The 6339169-3 connector is designed to operate in temperatures ranging from -40°C to 125°C (-40°F to 257°F) and is resistant to many chemicals, including fuels, oils, and cleaning solvents. However, it's essential to consult the datasheet and manufacturer's guidelines for specific environmental requirements.
  • The maximum current rating for the 6339169-3 connector is 3A per contact, but it's essential to consult the datasheet and manufacturer's guidelines for specific application requirements.
  • The 6339169-3 connector is suitable for both power and signal transmission applications, thanks to its low contact resistance and high-reliability design.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

6339169-3 Overview

Use the download button to access the 6339169-3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 63391, or try a keyword search, such as Telecom and Datacom Connectors
