6368150-3 - TE Connectivity

Description: Body Features: Shield Plating Material Tin | PCB Ground Tab Location 3.89 MM | PCB Ground Tab Location .153 INCH | Shield Material Copper Alloy | Connector Profile Standard | Modular Jack Latch Orientation Standard - Latch Down | Configuration Features: Status Light Type Not Illuminated | Port Matrix Configuration 1 x 1 | Port Configuration Single Port | PCB Mount Orientation Vertical | Number of Positions 8 | Number of Loaded Positions 8 | Connector Contact Density Standard | Number of PCB Ground Tabs 2 |

Download 6368150-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
6368150-3 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

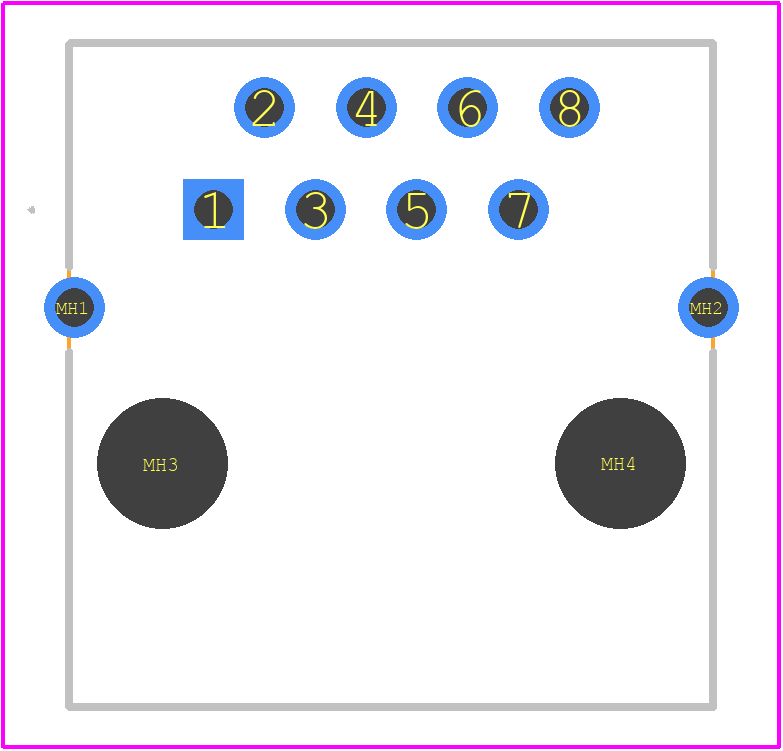

6368150-3 - TE Connectivity PCB footprint - Other - Other - 6368150-3-2
click to zoom
3D Models
6368150-3 - TE Connectivity - 3D model - Other - 6368150-3-2
click to zoom

6368150-3 Details

  • Manufacturer Part Number:

    6368150-3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    6 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • Body Depth:

    0.662 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    YES

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1.5A

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD AND PANEL

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    50u inch

  • Rated Current (Signal):

    1.5 A

  • Reference Standard:

    UL

  • Shell Finish:

    TIN

  • Shell Material:

    COPPER ALLOY

  • Terminal Length:

    0.157 inch

  • Terminal Pitch:

    1.02 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

6368150-3 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 6368150-3 connector is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for vibration testing and to ensure proper mounting and securing of the connector.
  • The 6368150-3 connector has a IP67 rating, making it suitable for outdoor use, but it's essential to ensure proper sealing and protection from environmental factors such as moisture, dust, and extreme temperatures.
  • While it's technically possible to use a different wire gauge, it's not recommended as it may affect the connector's performance, reliability, and safety. It's best to follow the manufacturer's recommended wire gauge specifications.
  • To ensure proper mating and unmating, follow the manufacturer's guidelines for connector handling, alignment, and mating/unmating forces. It's also essential to ensure the connector is properly cleaned and inspected before use.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

6368150-3 Overview

Use the download button to access the 6368150-3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 63681, or try a keyword search, such as Telecom and Datacom Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
