6376430-2 - TE Connectivity

Description: Body Features: Primary Product Color Natural | Configuration Features: Number of Rows 7 | PCB Mount Orientation Right Angle | Number of Positions 135 | Number of Sections 4 | Contact Features: Contact Mating Area Plating Material Tin (Sn) | Contact Type Tab | Contact Mating Area Plating Material Gold (Au) | Dimensions: Connector Width 4.437 INCH | Connector Length .767 INCH | PCB Thickness (Recommended) .063 INCH | Connector Length 19.5 MM | Connector Width 112.7 MM | Electrical Characteristics: Voltage Rat

Download 6376430-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
6376430-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

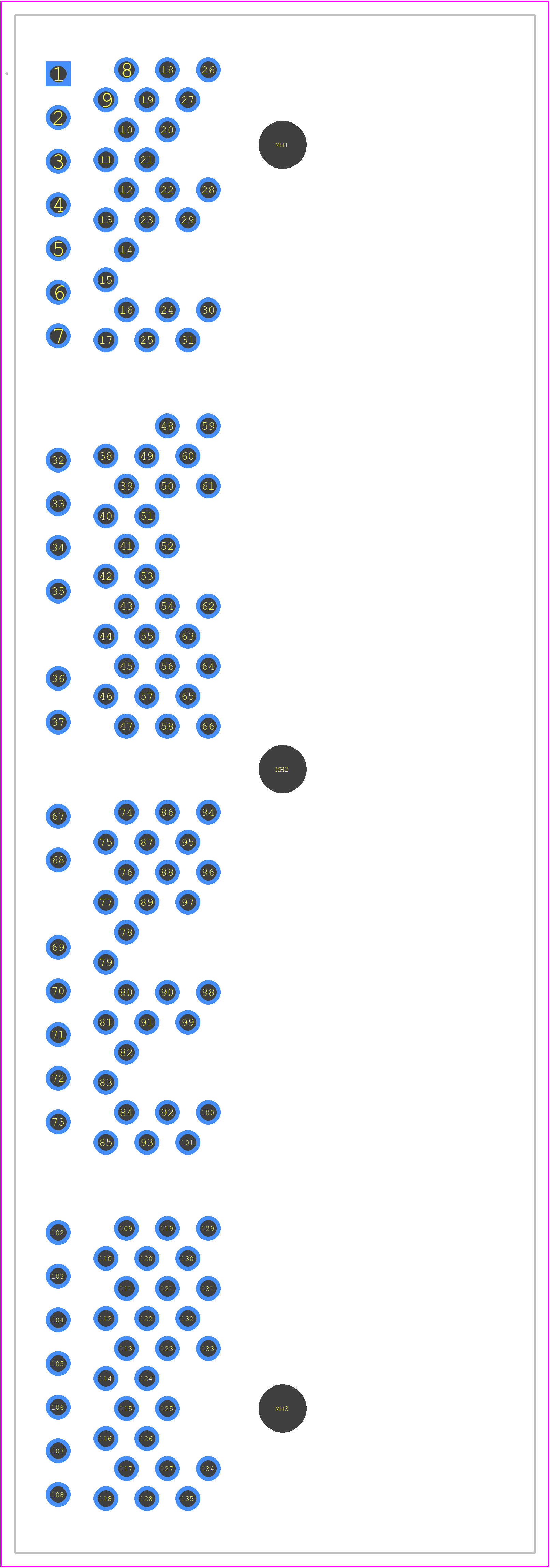

6376430-2 - TE Connectivity PCB footprint - Other - Other - 6376430-2-2
click to zoom
3D Models
6376430-2 - TE Connectivity - 3D model - Other - 6376430-2-2
click to zoom

6376430-2 Details

  • Manufacturer Part Number:

    6376430-2

  • Brand Name:

    TE Connectivity

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    17 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    0.961 inch

  • Body Depth:

    1.648 inch

  • Body Length:

    4.437 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number of Rows Loaded:

    4

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    135

6376430-2 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm (0.37 lb-in to 1.06 lb-in).
  • Yes, the 6376430-2 connector is suitable for outdoor use, as it has a IP67 rating, which means it can withstand dust and water immersion up to 1 meter for 30 minutes.
  • The operating temperature range of the 6376430-2 connector is -40°C to 125°C (-40°F to 257°F).
  • Yes, the 6376430-2 connector is designed to withstand high-vibration applications, with a vibration rating of 10-2000 Hz, 10 G peak acceleration.
  • Yes, the 6376430-2 connector meets the requirements of UL 1977 and UL 498 standards.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

6376430-2 Overview

Use the download button to access the 6376430-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 63764, or try a keyword search, such as Combination Line Connectors
