63R256 - Grayhill

Description: Rotary Encoder Optical 256 Quadrature (Incremental) Vertical

Download 63R256 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

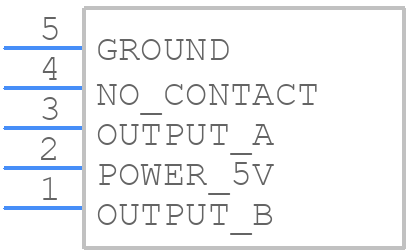

63R256 - Grayhill - PCB symbol
click to zoom
PCB Footprints

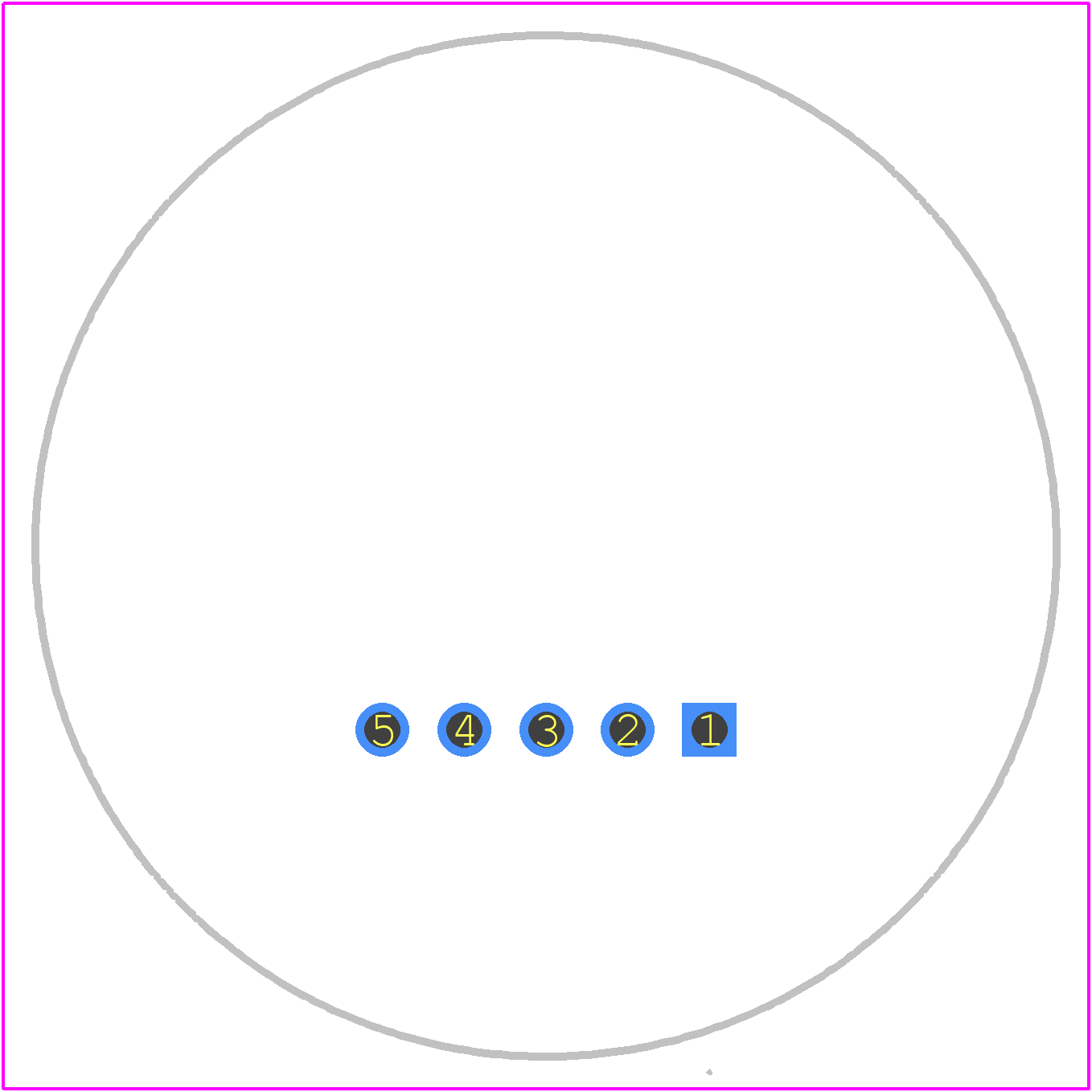

63R256 - Grayhill PCB footprint - Other - Other - 63R256-3
click to zoom
3D Models
63R256 - Grayhill - 3D model - Other - 63R256-3
click to zoom

63R256 Details

  • Manufacturer Part Number:

    63R256

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Grayhill Inc

  • Configuration:

    SINGLE, 2 CHANNELS

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    INCREMENTAL ROTARY ENCODER

63R256 Frequently Asked Questions (FAQs)

  • The recommended torque for assembling the 63R256 rotary switch is 5-7 in-lbs (0.56-0.79 Nm).
  • Yes, the 63R256 is designed to withstand vibrations up to 10 G's (10 m/s²) in the frequency range of 10-2000 Hz.
  • The operating temperature range for the 63R256 is -20°C to 85°C (-4°F to 185°F).
  • Yes, the 63R256 is designed to be IP67 rated, making it suitable for washdown or harsh environments.
  • Yes, Grayhill offers customization options for the 63R256, including custom shafts and bushings. Contact Grayhill for more information.
