640387-6 - TE Connectivity

Description: Configuration Features: Number of Power Positions 6 | Number of Rows 1 | PCB Mount Orientation Right Angle | Number of Positions 6 | Contact Features: Mating Post Length 10.16 MM | PCB Contact Termination Area Plating Material Tin | Contact Mating Area Plating Material Tin | Contact Type Pin | Contact Layout Inline | Contact Current Rating (Max) 7 AMP | Mating Post Length .4 INCH | PCB Contact Termination Area Plating Material Thickness 150 – 250 MICIN | Contact Mating Area Plating Material Thickness 100

Download 640387-6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
640387-6 - TE Connectivity - PCB symbol
click to zoom

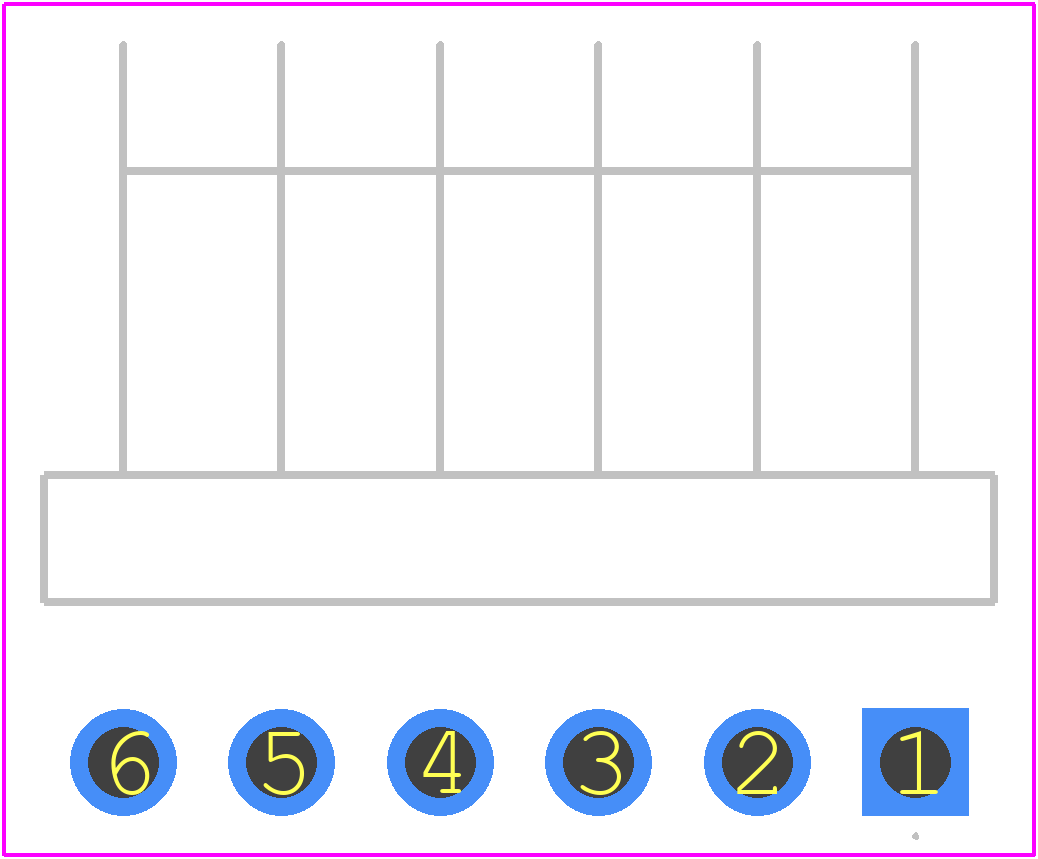

PCB Footprints
640387-6 - TE Connectivity PCB footprint - Other - Other - 640387-6-1
click to zoom
3D Models
640387-6 - TE Connectivity - 3D model - Other - 640387-6-1
click to zoom

640387-6 Details

  • Manufacturer Part Number:

    640387-6

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.3

  • Connector Type:

    BOARD CONNECTOR

640387-6 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 640387-6 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels.
  • The operating temperature range for the 640387-6 connector is -40°C to 125°C (-40°F to 257°F).
  • Yes, the 640387-6 connector is designed for outdoor use and can withstand exposure to moisture and humidity.
  • No, the 640387-6 connector is designed for use with wire gauges 20 AWG to 24 AWG. Using a larger wire gauge may compromise the connector's performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

640387-6 Overview

Use the download button to access the 640387-6 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 64038, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
