640387-7 - TE Connectivity

Description: Configuration Features: Number of Rows 1 | Number of Power Positions 7 | PCB Mount Orientation Right Angle | Number of Positions 7 | Contact Features: PCB Contact Termination Area Plating Material Thickness 150 – 250 MICIN | PCB Contact Termination Area Plating Material Tin | Contact Current Rating (Max) 7 AMP | Contact Mating Area Plating Material Tin | Contact Type Pin | Mating Post Length .4 INCH | Contact Mating Area Plating Material Thickness 100 MICIN | Contact Mating Area Plating Material Thickness

Download 640387-7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
640387-7 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

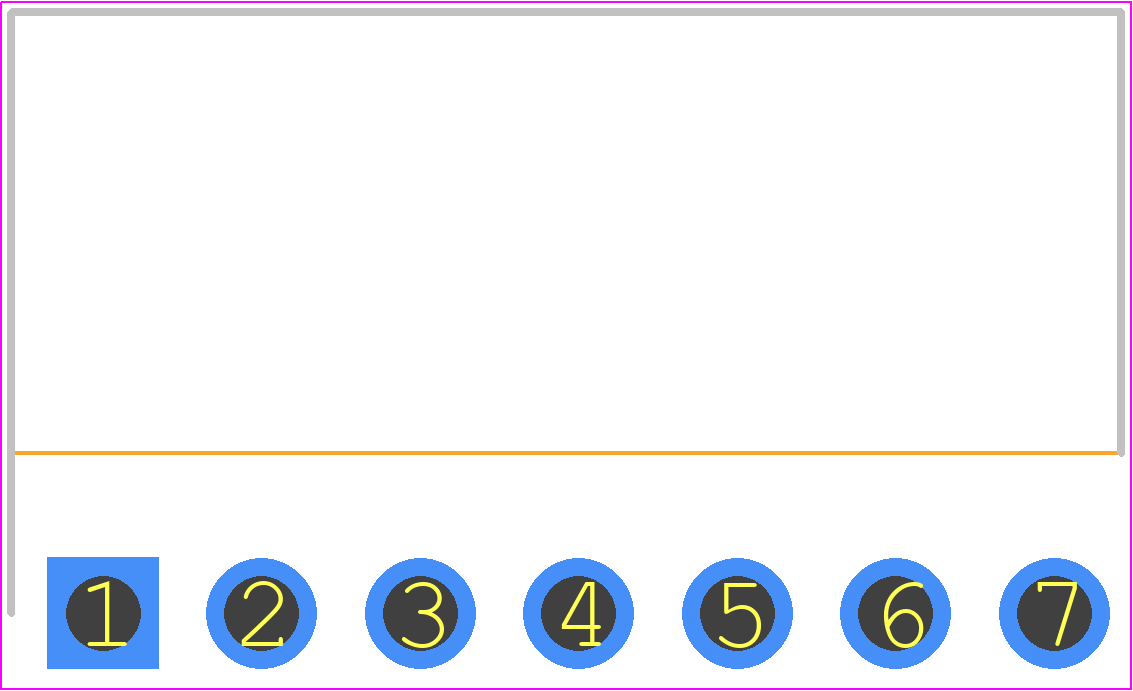

640387-7 - TE Connectivity PCB footprint - Header, Shrouded - Right Angle PTH Box - Header, Shrouded - Right Angle PTH Box - 640387-7
click to zoom
3D Models
640387-7 - TE Connectivity - 3D model - Header, Shrouded - Right Angle PTH Box - 640387-7
click to zoom

640387-7 Details

  • Manufacturer Part Number:

    640387-7

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.6

  • Connector Type:

    BOARD CONNECTOR

640387-7 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 640387-7 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as rail, aerospace, and industrial control systems.
  • The 640387-7 connector has a IP67 rating, which means it is protected against dust and water ingress. However, it's essential to ensure proper sealing and protection when using the connector in outdoor environments to maintain its performance and reliability.
  • The 640387-7 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • While the 640387-7 connector is designed for use with 24 AWG wire, it can accommodate wire sizes between 20 AWG and 28 AWG. However, it's essential to ensure that the wire size and insulation meet the connector's specifications to maintain reliable connections.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

640387-7 Overview

Use the download button to access the 640387-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 64038, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity
