64333-0100 - Molex

Description: MOLEX - 64333-0100 - HEADER, R/A, CMC, 112WAY

Download 64333-0100 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
64333-0100 - Molex - PCB symbol
click to zoom
PCB Footprints

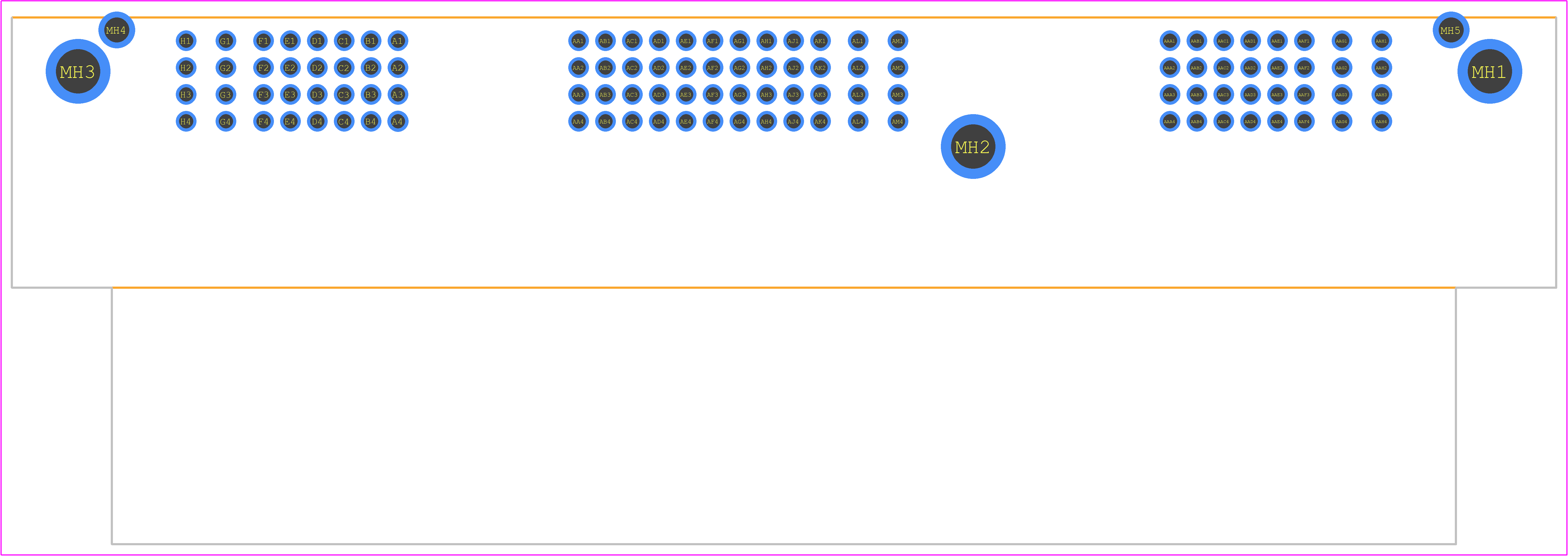

64333-0100 - Molex PCB footprint - Other - Other - 64333-0100
click to zoom
3D Models
64333-0100 - Molex - 3D model - Other - 64333-0100
click to zoom

64333-0100 Details

  • Manufacturer Part Number:

    64333-0100

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    7.69

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYAMIDE

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number of Rows Loaded:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    12 A

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    112

64333-0100 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
  • Yes, the 64333-0100 is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
  • The operating temperature range for the 64333-0100 is -40°C to 105°C (-40°F to 221°F).
  • Yes, the 64333-0100 is designed for outdoor use and can withstand exposure to moisture and humidity.
  • No, the 64333-0100 is designed for use with wire gauges 20 AWG to 24 AWG. Using a larger wire gauge may compromise the connector's performance and reliability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

64333-0100 Overview

Use the download button to access the 64333-0100 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 64333, or try a keyword search, such as Combination Line Connectors
