6437288-4 - TE Connectivity

Description: Body Features: Primary Product Color Black | Configuration Features: Number of Rows 4 | Number of Sections 1 | Number of Signal Positions 26 | PCB Mount Orientation Horizontal | Number of Positions 26 | Contact Features: Contact Mating Area Plating Material Gold | Contact Type Pin | Contact Size 1mm | Mating Pin Diameter .039 INCH | Mating Pin Diameter 1 MM | Dimensions: Connector Length 36.5 MM | Profile Height from PCB 1.098 INCH | Connector Length 1.437 INCH | Connector Width 39.5 MM | Connector Width 1.

Download 6437288-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
6437288-4 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

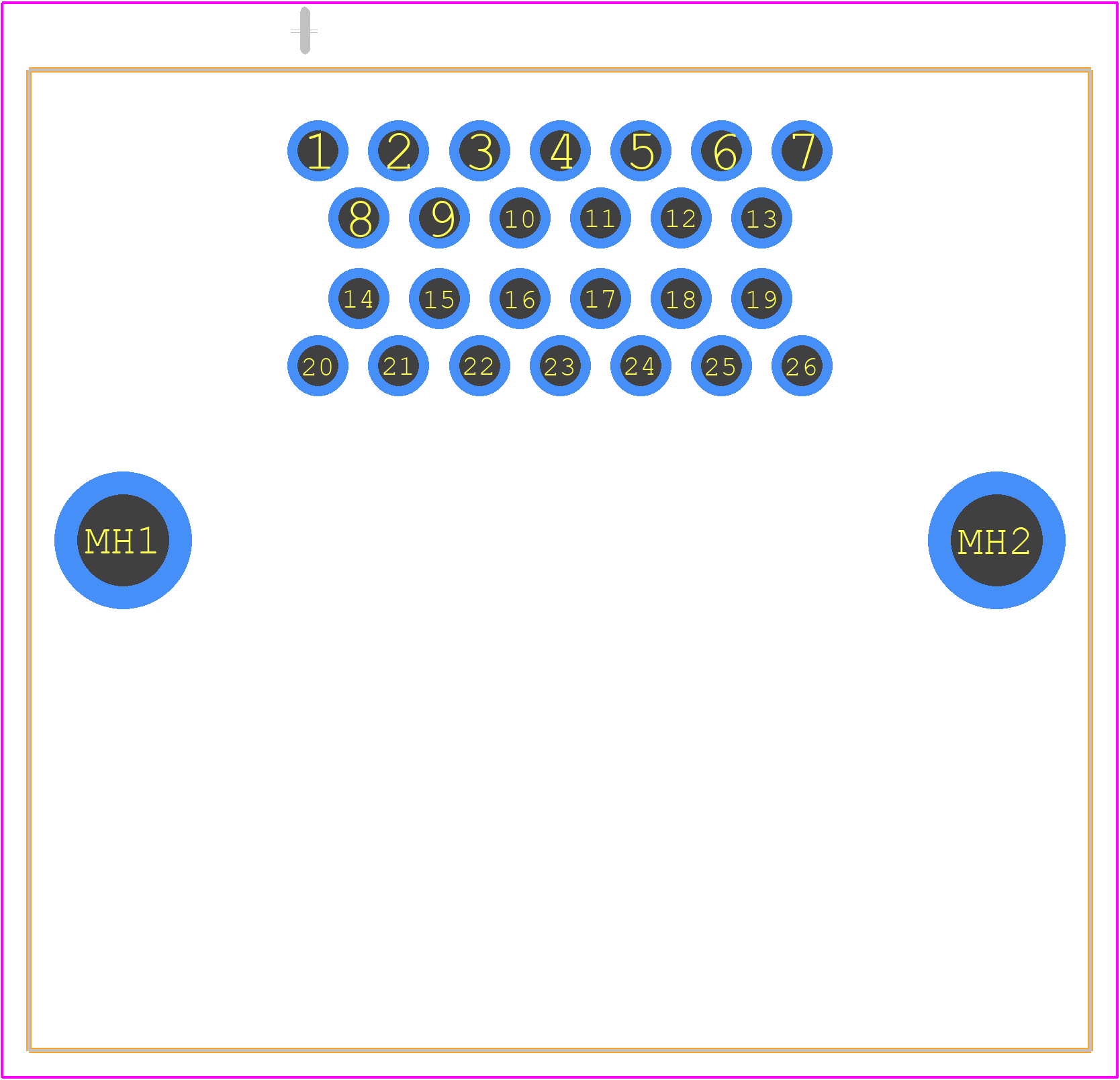

6437288-4 - TE Connectivity PCB footprint - Other - Other - 6437288-4-1
click to zoom
3D Models
6437288-4 - TE Connectivity - 3D model - Other - 6437288-4-1
click to zoom

6437288-4 Details

  • Manufacturer Part Number:

    6437288-4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.6

  • Connector Type:

    COMBINATION LINE CONNECTOR

6437288-4 Frequently Asked Questions (FAQs)

  • The recommended torque specification for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
  • Yes, the 6437288-4 connector is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G.
  • Yes, the 6437288-4 connector is rated IP67, making it suitable for outdoor use and providing protection against dust and water ingress.
  • The operating temperature range for the 6437288-4 connector is -40°C to 125°C (-40°F to 257°F).
  • No, the 6437288-4 connector is designed for use with wire gauges 24 AWG to 30 AWG. Using a larger wire gauge may compromise the connector's performance and reliability.
