- Part Number 6450521-1
- Manufacturer TE Connectivity
- Pin Count 26
- Part Category Connector
- Package Category Other
- Footprint Name Other - 6450521-1-3
- Released Date May 21, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
6450521-1 Details
-
Manufacturer Part Number:
6450521-1
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
TE Connectivity
-
Board Mounting Option:
SPLIT BOARD LOCK
-
Body Breadth:
0.574 inch
-
Body Depth:
0.93 inch
-
Body Length:
1.3 inch
-
Connector Type:
BOARD CONNECTOR
6450521-1 Frequently Asked Questions (FAQs)
-
The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
-
Yes, the 6450521-1 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 standard for vibration resistance, making it suitable for use in applications such as rail, industrial, and automotive.
-
The operating temperature range for the 6450521-1 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to note that the temperature range may vary depending on the specific application and environmental conditions.
-
Yes, the 6450521-1 connector is designed for outdoor use and meets the IP67 rating for ingress protection. It can withstand exposure to water, dust, and other environmental elements, making it suitable for use in outdoor applications such as industrial, transportation, and infrastructure.
-
While the datasheet specifies 24 AWG wire, the 6450521-1 connector can accommodate wire sizes ranging from 20 AWG to 26 AWG. However, it's essential to ensure that the wire size and insulation meet the connector's specifications to ensure reliable connections.
Trust Checks
Expert Contribution
System Verified
Community Approved
6450521-1 Overview

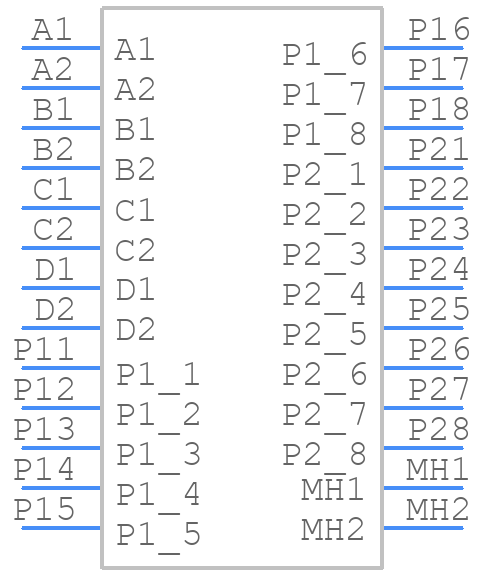

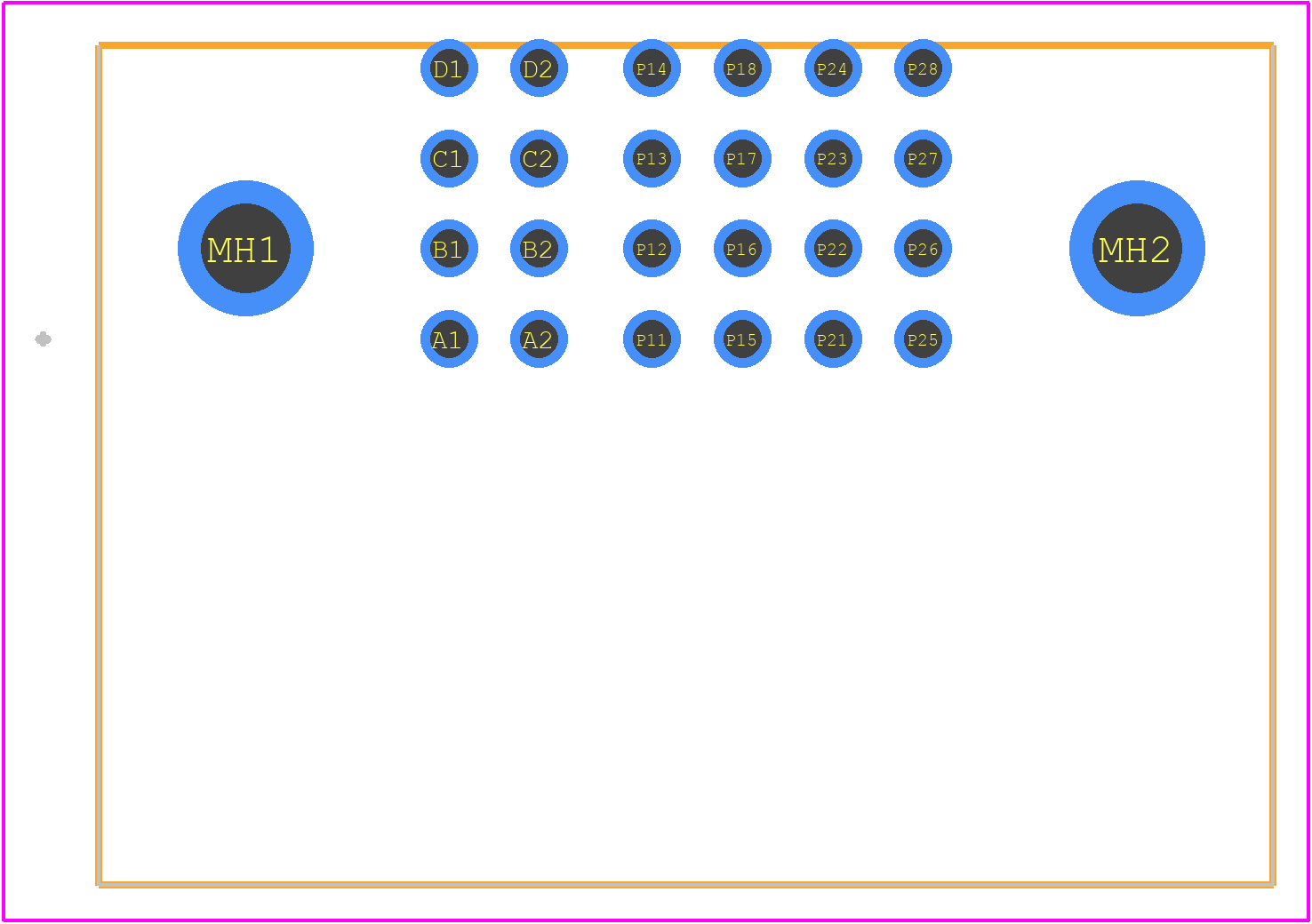

Use the download button to access the 6450521-1 schematic symbol, PCB footprint, and 3D model.
