6450553-2 - TE Connectivity

Description: PCB Mount Receptacle, Vertical, Board-to-Board, 6 Position, 5.08 mm / 7.62 mm [.2 in / .3 in] Centerline, Fully Shrouded, Gold

Download 6450553-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

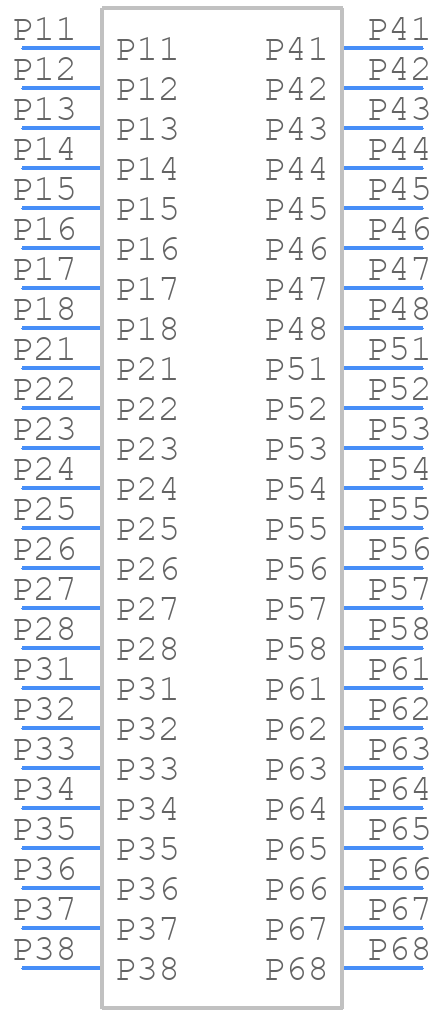

6450553-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

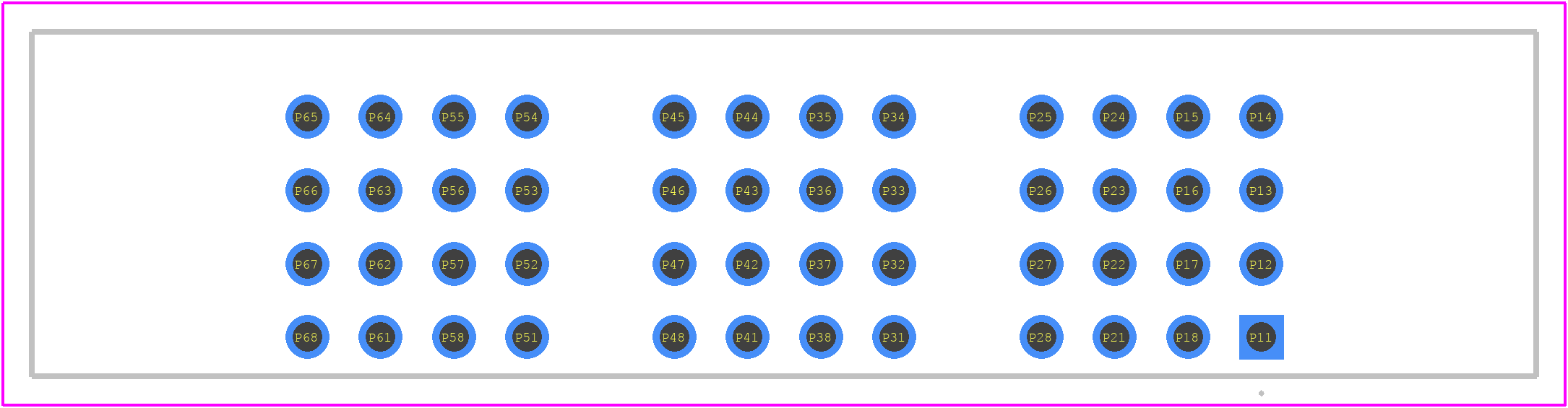

6450553-2 - TE Connectivity PCB footprint - Other - Other - 6450553-2-1
click to zoom
3D Models
6450553-2 - TE Connectivity - 3D model - Other - 6450553-2-1
click to zoom

6450553-2 Details

  • Manufacturer Part Number:

    6450553-2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    14 Weeks, 4 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.9

  • Board Mounting Option:

    COMPLIANT BOARDLOCK

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    42A

  • Mixed Contacts:

    NO

  • Mounting Option 2:

    BOARDLOCK

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -20 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Rated Current (Signal):

    42 A

  • Rated Voltage:

    300 V

  • Reference Standard:

    UL

  • Terminal Length:

    0.135 inch

  • Terminal Pitch:

    5.08 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    6

  • UL Flammability Code:

    94V-0
