6450810-1 - TE Connectivity

Description: Body Features: Wire Color (Base) Black | Configuration Features: Number of Signal Positions 48 | Number of Positions 64 | Number of Power Positions 16 | Mating & Unmating Configuration Normal | PCB Mount Orientation Vertical | Number of Rows 4 | Contact Features: Contact Mating Area Plating Material Gold Flash over Palladium Nickel | Contact Base Material Copper Alloy | Contact Type Blade | PCB Contact Termination Area Plating Material Tin | Contact Underplating Material Nickel | Contact Mating Area Plating

Download 6450810-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
6450810-1 - TE Connectivity - PCB symbol
click to zoom

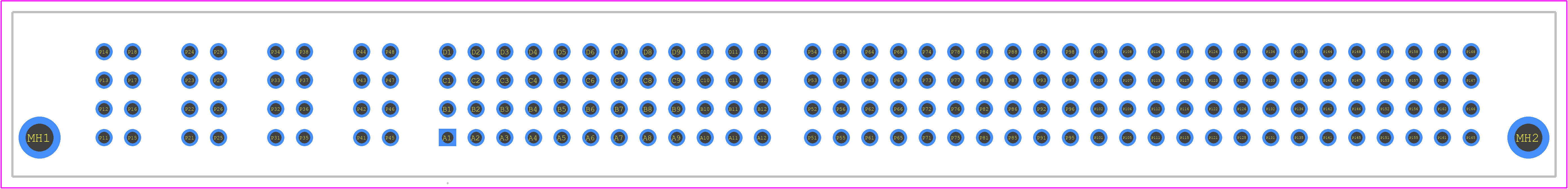

PCB Footprints
6450810-1 - TE Connectivity PCB footprint - Other - Other - 6450810-1-2
click to zoom
3D Models
6450810-1 - TE Connectivity - 3D model - Other - 6450810-1-2
click to zoom

6450810-1 Details

  • Manufacturer Part Number:

    6450810-1

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9.1

  • Board Mounting Option:

    BOARD LOCK

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD CONNECTOR

  • Contact Arrangement:

    S48P16

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    50A

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    YES

  • Mounting Option 2:

    BOARDLOCK

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    4

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Rated Current (Signal):

    50 A

  • Rated Voltage:

    300 V

  • Reference Standard:

    UL

  • Terminal Length:

    0.175 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    64

  • UL Flammability Code:

    94V-0

6450810-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
  • Yes, the 6450810-1 connector is designed to withstand high-vibration environments. It meets the IEC 61373 standard for vibration resistance, making it suitable for use in applications such as transportation, industrial, and aerospace.
  • The operating temperature range for the 6450810-1 connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • The 6450810-1 connector has a IP67 rating, which means it is protected against dust and temporary immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's not recommended for use in environments with exposure to harsh chemicals or prolonged immersion in water.
  • While the datasheet recommends using AWG 20-24 wire sizes, it's possible to use other wire sizes with the 6450810-1 connector. However, it's essential to ensure that the wire size is compatible with the connector's terminal design and that the wire is properly secured to prevent damage or electrical issues.
