6450830-1 - TE Connectivity

Description: Configuration Features: PCB Mount Orientation Right Angle | Number of Signal Positions 8 | Number of Positions 12 | Number of Power Positions 4 | Number of Rows 4 | Contact Features: Contact Mating Area Plating Material Thickness 3 MICIN | Contact Retention Within Housing Without | Contact Underplating Material Nickel | Contact Type Pin | Contact Type Blade | Power Contact Base Material Tin | Contact Current Rating (Max) 50 AMP | Contact Mating Area Plating Material Gold Flash over Palladium Nickel | PCB Co

Download 6450830-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

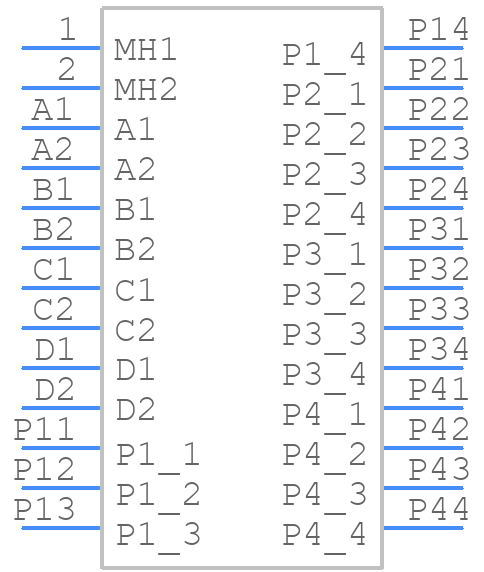

Symbol
6450830-1 - TE Connectivity - PCB symbol
click to zoom

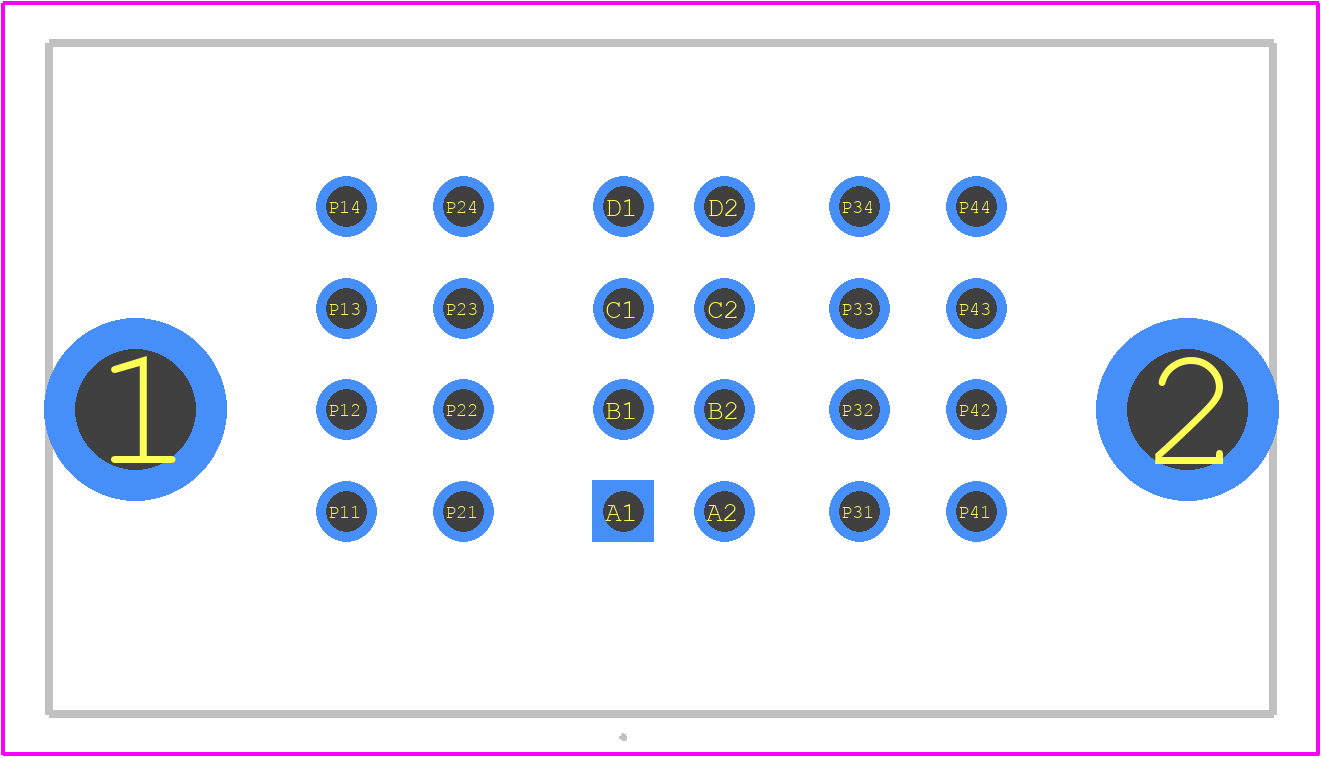

PCB Footprints
6450830-1 - TE Connectivity PCB footprint - Other - Other - 6450830-1-1
click to zoom
3D Models
6450830-1 - TE Connectivity - 3D model - Other - 6450830-1-1
click to zoom

6450830-1 Details

  • Manufacturer Part Number:

    6450830-1

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9.1

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD CONNECTOR

  • Contact Arrangement:

    S8P4

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    50A

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    YES

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    4

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    3u inch

  • Rated Current (Signal):

    50 A

  • Rated Voltage:

    60 V

  • Reference Standard:

    UL

  • Terminal Length:

    0.175 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    12

  • UL Flammability Code:

    94V-0

6450830-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 6450830-1 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 6450830-1 connector has a rating of IP20, which means it provides some protection against solid objects and limited protection against water. While it can be used in outdoor applications, it's not recommended for direct exposure to harsh environments, such as high temperatures, humidity, or chemical exposure. Additional protection or sealing may be required for such applications.
  • While the datasheet recommends using AWG 20-24 wires, it's possible to use other wire sizes with the 6450830-1 connector. However, it's essential to ensure the wire size is compatible with the connector's terminal design and that the wire insulation is not damaged during insertion. Consult with TE Connectivity or a qualified engineer for guidance on using non-recommended wire sizes.
  • Yes, as with any electrical connector, it's essential to follow proper safety precautions when using the 6450830-1 connector. Ensure that the connector is used within its rated voltage and current specifications, and that it's properly installed and secured to prevent electrical shock or fire hazards.
