6450873-3 - TE Connectivity

Description: Multi Beam XLE Right Angle Receptacle with Short End Module 6LP

Download 6450873-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

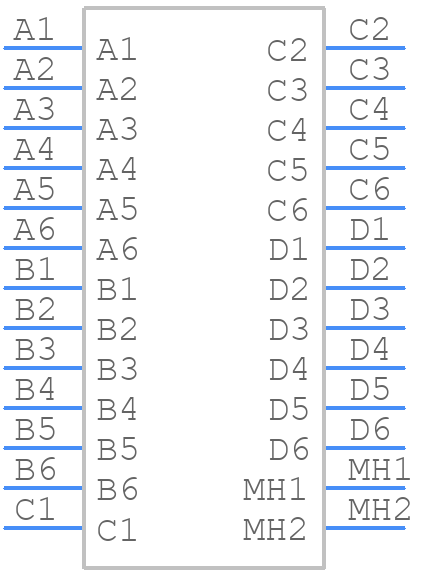

6450873-3 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

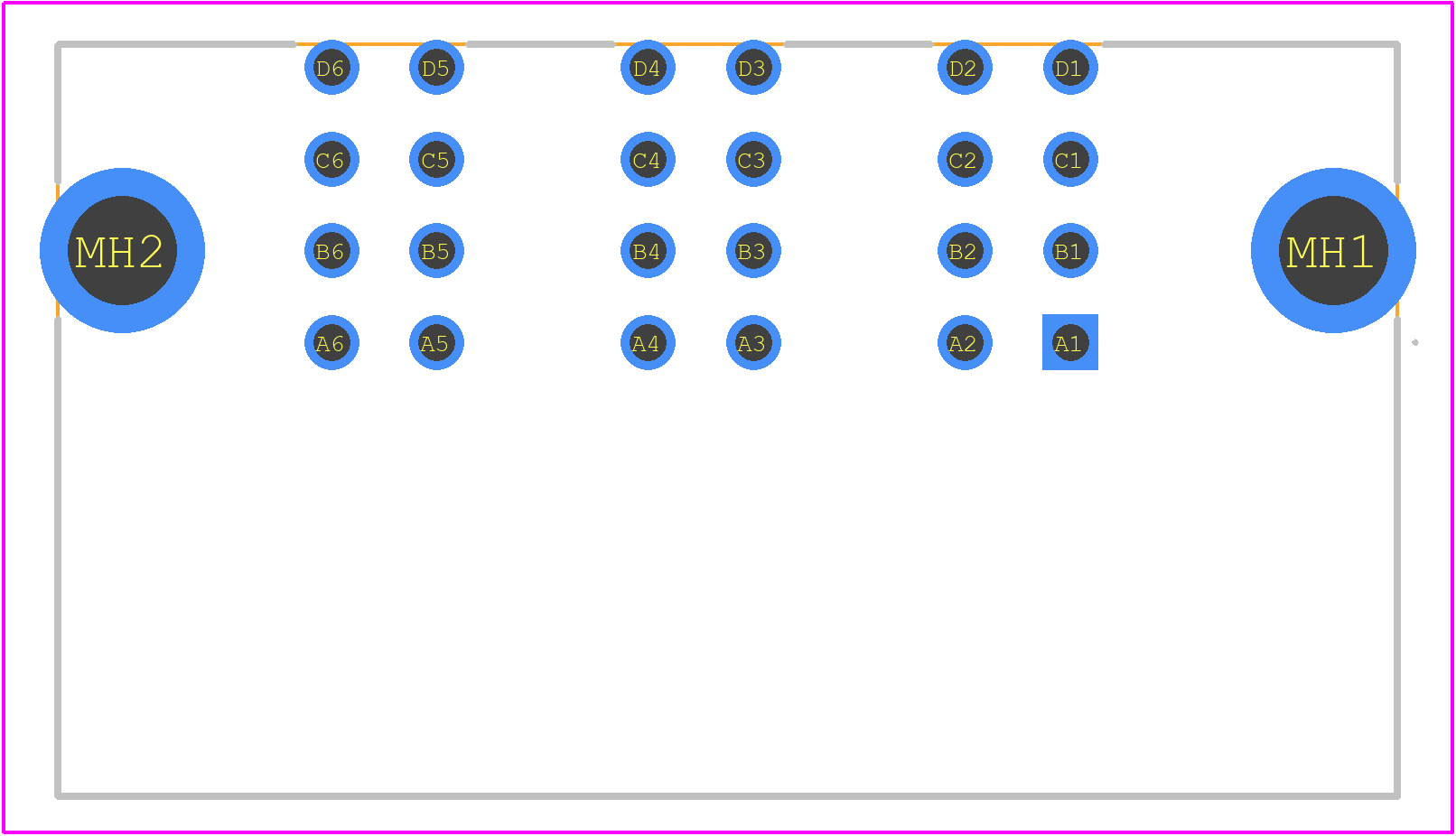

6450873-3 - TE Connectivity PCB footprint - Other - Other - 6450873-3-7
click to zoom
3D Models
6450873-3 - TE Connectivity - 3D model - Other - 6450873-3-7
click to zoom

6450873-3 Details

  • Manufacturer Part Number:

    6450873-3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    8 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    0.47 inch

  • Body Depth:

    0.82 inch

  • Body Length:

    1.46 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Arrangement:

    S0P6

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Resistance:

    20 mΩ

  • Dielectric Withstanding Voltage:

    1000VAC V

  • Durability:

    500 Cycles

  • Filter Feature:

    NO

  • Insertion Force-Max:

    1.668 N

  • Insulation Resistance:

    500000000 Ω

  • Insulator Material:

    GLASS FILLED POLYETHYLENE

  • Mixed Contacts:

    YES

  • Mounting Option 1:

    GUIDE PIN

  • Mounting Option 2:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Reference Standard:

    UL

  • Terminal Length:

    0.135 inch

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6

  • Withdrawl Force-Min:

    .1946 N
