6473423-2 - TE Connectivity

Description: Body Features: Primary Product Color Black | Connector & Keying Code 3 | Configuration Features: Number of Positions 26 | Number of Rows 4 | Number of Signal Positions 26 | PCB Mount Orientation Horizontal | Contact Features: Contact Size 1mm | Contact Type Pin | Contact Mating Area Plating Material Gold | Mating Pin Diameter .039 INCH | Mating Pin Diameter 1 MM | Dimensions: Profile Height from PCB 23 MM | Profile Height from PCB .906 INCH | Connector Width 38.5 MM | Connector Length 46.5 MM | Connector Wi

Download 6473423-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
6473423-2 - TE Connectivity - PCB symbol
click to zoom

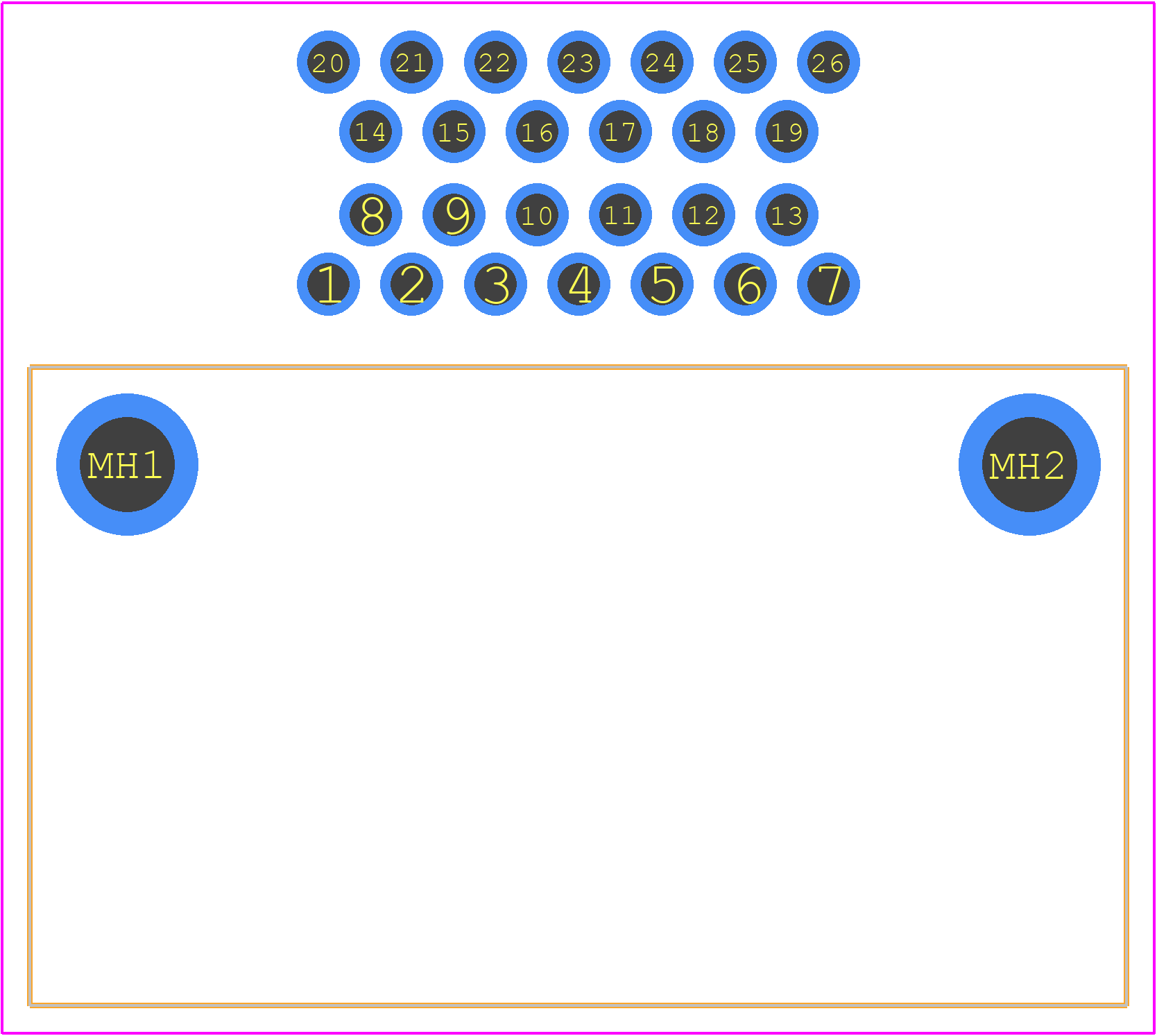

PCB Footprints
6473423-2 - TE Connectivity PCB footprint - Other - Other - 6473423-2-2
click to zoom
3D Models
6473423-2 - TE Connectivity - 3D model - Other - 6473423-2-2
click to zoom

6473423-2 Details

  • Manufacturer Part Number:

    6473423-2

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    TE Connectivity

  • Connector Type:

    COMBINATION LINE CONNECTOR

6473423-2 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
  • Yes, the connector is designed for harsh environments and can withstand outdoor use, but it's essential to ensure proper sealing and protection from moisture and extreme temperatures.
  • Yes, the 6473423-2 connector is designed to withstand high-vibration environments, making it suitable for applications such as industrial machinery, transportation, and aerospace.
  • The operating temperature range for the 6473423-2 connector is -40°C to 125°C (-40°F to 257°F).
  • Yes, the 6473423-2 connector is designed for automated assembly and can be easily integrated into high-volume manufacturing processes.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

6473423-2 Overview

Use the download button to access the 6473423-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 64734, or try a keyword search, such as Combination Line Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
