- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 6473649-1
- Part Number 6473649-1
- Manufacturer TE Connectivity
- Pin Count 200
- Part Category Connector
- Package Category Other

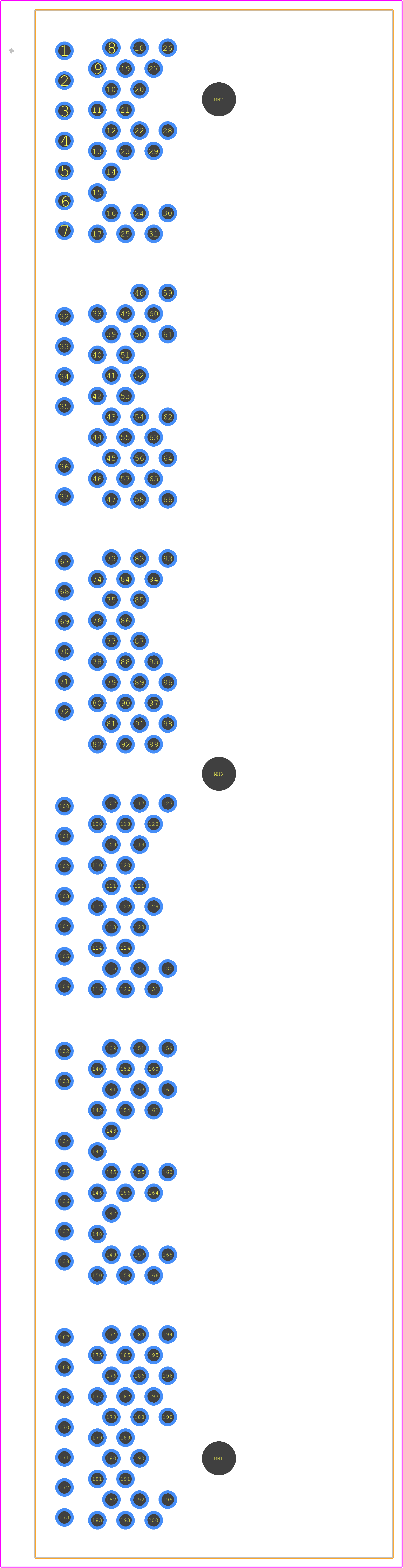

- Footprint Name Other - 6473649-1-5
- Released Date Apr 21, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
6473649-1 Details
-
Manufacturer Part Number:
6473649-1
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
Country Of Origin:
Japan
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Manufacturer:
TE Connectivity
-
YTEOL:
3
-
Body Breadth:
0.961 inch
-
Body Depth:
1.701 inch
-
Body Length:
6.493 inch
6473649-1 Frequently Asked Questions (FAQs)
-
The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
-
Yes, the 6473649-1 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 standard for vibration resistance, making it suitable for use in applications such as transportation, industrial, and aerospace.
-
The operating temperature range for the 6473649-1 connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
-
The 6473649-1 connector has a IP67 rating, which means it is protected against dust and temporary immersion in water up to 1 meter for 30 minutes. However, it's not recommended for use in environments with exposure to harsh chemicals or prolonged immersion in water.
-
The 6473649-1 connector has a mating cycle life of 500 cycles. This means it can withstand 500 connect and disconnect cycles without compromising its performance or reliability.
Trust Checks
Expert Contribution
System Verified
Community Approved
6473649-1 Overview
Use the download button to access the 6473649-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 64736,
or try a keyword search, such as Combination Line Connectors
