6489170-1 - TE Connectivity

Description: Body Features: Primary Product Color Black | Configuration Features: Number of Signal Positions 0 | Number of Dual Positions 30 | Keying & Polarized Position Locations 4, 5 | PCB Mount Orientation Vertical | Number of Power Positions 60 | Number of Positions 60 | Contact Features: Contact Mating Area Plating Material Thickness .76 MICM | Contact Underplating Material Nickel | PCB Contact Termination Area Plating Material Thickness 2.54 MICM | Contact Current Rating (Max) 3 AMP | Contact Mating Area Plating

Download 6489170-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
6489170-1 - TE Connectivity - PCB symbol
click to zoom

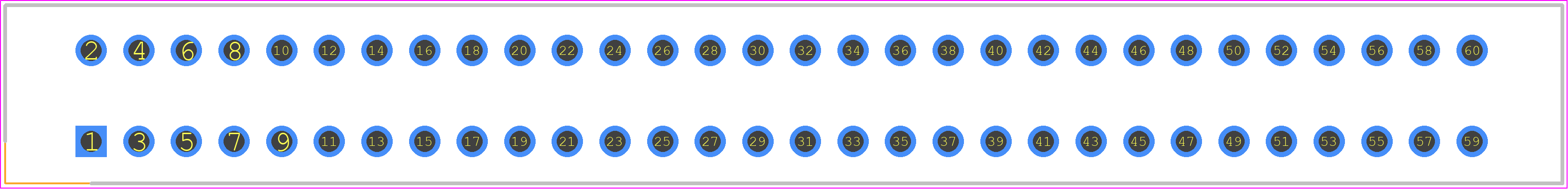

PCB Footprints
6489170-1 - TE Connectivity PCB footprint - Header, Receptacle - Straight PTH Box - Header, Receptacle - Straight PTH Box - 6489170-1
click to zoom
3D Models
6489170-1 - TE Connectivity - 3D model - Header, Receptacle - Straight PTH Box - 6489170-1
click to zoom

6489170-1 Details

  • Manufacturer Part Number:

    6489170-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    8 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Additional Feature:

    TERMINAL PITCH FOR POWER CONTACTS IS 2.54 MM

  • Body Breadth:

    0.368 inch

  • Body Depth:

    0.81 inch

  • Body Length:

    3.26 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    CARD EDGE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    BELLOWED TYPE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYESTER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    3A

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.241 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    4.85 mm

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    3 A

  • Rated Voltage:

    400 V

  • Reference Standard:

    UL

  • Terminal Length:

    0.125 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    56

  • UL Flammability Code:

    94V-0

6489170-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 6489170-1 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • The operating temperature range for the 6489170-1 connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • The 6489170-1 connector has a sealed design that provides some level of protection against moisture and contaminants. However, it's not designed for use in extremely harsh environments. If you need a connector for use in such environments, consider using a connector with a higher IP rating or specialized coatings.
  • While the 6489170-1 connector is designed for use with AWG 20-24 wires, it may be possible to use it with other wire sizes. However, this may affect the connector's performance and reliability. It's essential to consult with TE Connectivity or a qualified engineer to determine the suitability of the connector for use with non-recommended wire sizes.
