6489930-8 - TE Connectivity

Description: Body Features: Primary Product Color Black | Configuration Features: Number of Power Positions 62 | Number of Positions 62 | PCB Mount Orientation Vertical | Number of Dual Positions 31 | Number of Signal Positions 0 | Contact Features: Contact Base Material Phosphor Bronze | PCB Contact Termination Area Plating Material Tin | Contact Current Rating (Max) 6.05 AMP | Contact Mating Area Plating Material Thickness 30 MICIN | Contact Mating Area Plating Material Gold | Contact Mating Area Plating Material Thic

Download 6489930-8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
6489930-8 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

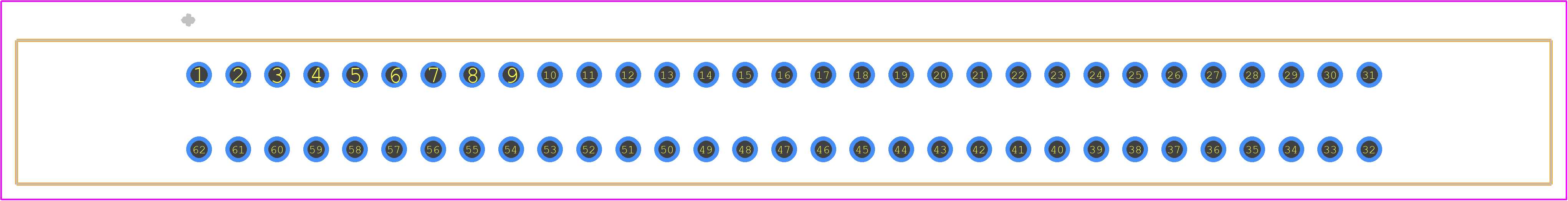

6489930-8 - TE Connectivity PCB footprint - Other - Other - 6489930-8-1
click to zoom
3D Models
6489930-8 - TE Connectivity - 3D model - Other - 6489930-8-1
click to zoom

6489930-8 Details

  • Manufacturer Part Number:

    6489930-8

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    11 Weeks, 4 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Additional Feature:

    TERMINAL PITCH FOR POWER CONTACTS IS 2.54 MM

  • Body Depth:

    0.87 inch

  • Connector Type:

    CARD EDGE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYESTER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    6.05A

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Rated Current (Signal):

    6.05 A

  • Rated Voltage:

    400 V

  • Reference Standard:

    UL

  • Terminal Length:

    0.185 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    61

  • UL Flammability Code:

    94V-0

6489930-8 Frequently Asked Questions (FAQs)
