650405-5 - TE Connectivity

Description: Eurocard Connectors, Receptacle, Board-to-Board, 150 Position, .1 in [2.54 mm] Centerline, Printed Circuit Board, 3 Row, Vertical, 50 Column

Download 650405-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
650405-5 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

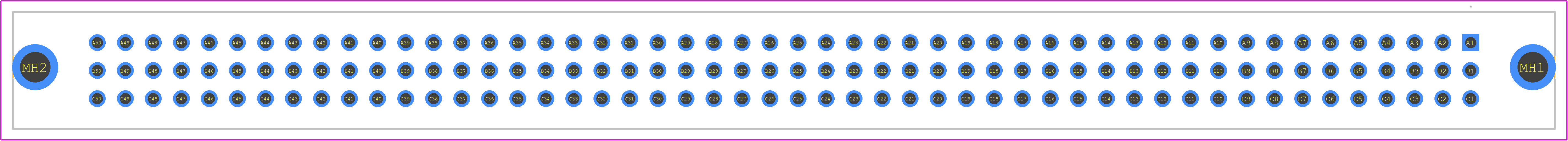

650405-5 - TE Connectivity PCB footprint - Other - Other - 650405-5-2
click to zoom
3D Models
650405-5 - TE Connectivity - 3D model - Other - 650405-5-2
click to zoom

650405-5 Details

  • Manufacturer Part Number:

    650405-5

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    7 Weeks, 6 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6

  • Additional Feature:

    STANDARDS: DIN 41612; IEC 603-2

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Name of Rows Loaded:

    B,A,C

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    3

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Terminal Length:

    0.13 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    150

  • UL Flammability Code:

    94V-0

650405-5 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
  • Yes, the 650405-5 connector is designed to withstand vibrations up to 10g (IEC 60068-2-6) and is suitable for use in high-vibration applications. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate smaller wire sizes (e.g., AWG 26-28) with the use of wire adapters or by following TE Connectivity's wire stripping and termination guidelines.
  • The 650405-5 connector is rated for operating temperatures between -40°C to 125°C and can withstand humidity up to 95% RH. However, it's essential to follow TE Connectivity's guidelines for environmental sealing and protection to ensure reliable performance in harsh environments.
  • Yes, to ensure reliable connection and prevent damage to the connector or PCB, it's essential to follow TE Connectivity's recommended PCB layout guidelines, including keeping the PCB thickness within 1.6 mm (0.063 in) and maintaining a minimum clearance of 1.5 mm (0.059 in) around the connector.
