650860-5 footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

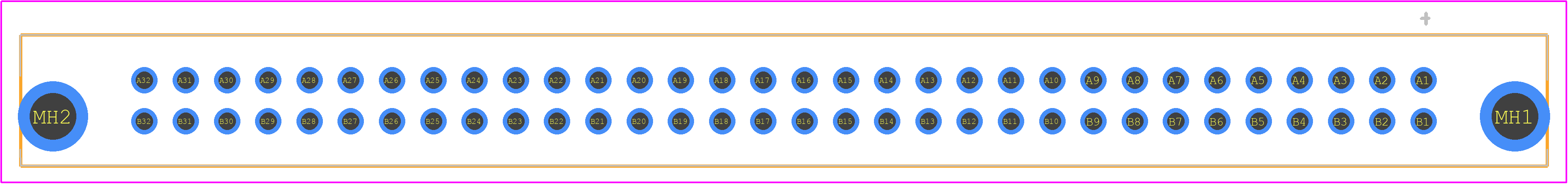

PCB Footprints

650860-5 - TE Connectivity PCB footprint - Other - Other - 650860-5-2

click to zoom

3D Models

650860-5 - TE Connectivity - 3D model - Other - 650860-5-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 650860-5
Part Number 650860-5
Manufacturer TE Connectivity
Pin Count 66
Part Category Connector
Package Category Other
Footprint Name Other - 650860-5-2
Released Date Feb 27, 2020
Last Modified Date Dec 15, 2024 11:07 PM UTC
Pinout / Pin List Click Here (Member Only)

650860-5 Details

Manufacturer Part Number:
650860-5
Pbfree Code:
No
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
11 Weeks, 3 Days
Manufacturer:
TE Connectivity
YTEOL:
6
Additional Feature:
STANDARD: DIN 41612
Body/Shell Style:
RECEPTACLE
Connector Type:
BOARD EURO CONNECTOR
Contact Finish Mating:
NOT APPLICABLE
Contact Gender:
FEMALE
Contact Material:
NOT APPLICABLE
DIN Conformance:
NO
EMI Shielded:
NO
Empty Shell:
YES
Filter Feature:
NO
IEC Conformance:
NO
MIL Conformance:
NO
Mains Connector Rating:
115/230VAC
Mating Contact Row Spacing:
0.1 inch
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Name of Rows Loaded:
B,A
Number Of Connectors:
ONE
Number of Ports:
1
Number of Rows Loaded:
2
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Panel Mount:
NO
Terminal Length:
0.13 inch
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
64
UL Flammability Code:
94V-0

650860-5 Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs) to ensure secure connections.
Yes, the 650860-5 connector is designed to withstand high-vibration environments, but it's recommended to follow TE Connectivity's guidelines for vibration testing and to ensure proper mounting and screw torque.
The 650860-5 connector has a IP67 rating, making it suitable for outdoor use, but it's essential to ensure proper sealing and protection from environmental factors such as moisture, dust, and UV exposure.
While the datasheet specifies AWG 20-24 wire sizes, it's possible to use other wire sizes with the 650860-5 connector, but it's recommended to consult with TE Connectivity's application engineers to ensure compatibility and proper termination.
The 650860-5 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F), making it suitable for a wide range of applications.

Trust Checks

Expert Contribution

System Verified

Community Approved

650860-5 Overview

Use the download button to access the 650860-5 schematic symbol, PCB footprint, and 3D model.
