650874-5 - TE Connectivity

650874-5 Details

• Manufacturer Part Number:

  650874-5

• Brand Name:

  AMP

• Pbfree Code:

  No

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Factory Lead Time:

  14 Weeks

• Manufacturer:

  TE Connectivity

• YTEOL:

  6

• Additional Feature:

  STANDARDS: DIN 41612; IEC 603-2, POLARIZED

• Body Breadth:

  0.413 inch

• Body Depth:

  0.712 inch

• Body Length:

  4.496 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  BOARD EURO CONNECTOR

• Contact Finish Mating:

  NOT APPLICABLE

• Contact Gender:

  FEMALE

• Contact Material:

  NOT APPLICABLE

• Contact Resistance:

  15 mΩ

• Contact Style:

  SQ PIN-SKT

• DIN Conformance:

  NO

• EMI Shielded:

  NO

• Empty Shell:

  YES

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  .9452 N

• Insulation Resistance:

  1000000000 Ω

• Insulator Color:

  GRAY

• Insulator Material:

  GLASS FILLED POLYESTER

• MIL Conformance:

  NO

• Mains Connector Rating:

  1.5A

• Mating Contact Pitch:

  0.1 inch

• Mating Contact Row Spacing:

  0.1 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Name of Rows Loaded:

  B,C,A

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  3

• Number of Ports:

  1

• Number of Rows Loaded:

  3

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

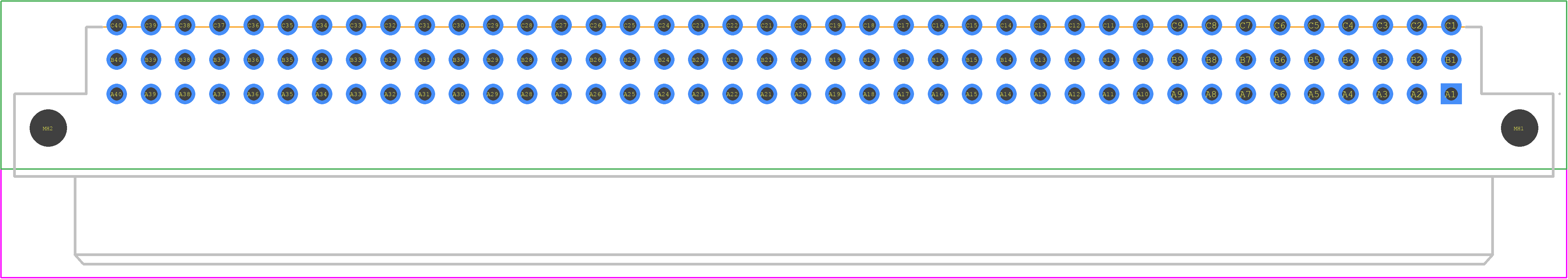

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  2.54 mm

• Panel Mount:

  NO

• Plating Thickness:

  30u inch

• Polarization Key:

  POLARIZED

• Rated Current (Signal):

  1.5 A

• Reference Standard:

  UL

• Terminal Length:

  0.11 inch

• Terminal Pitch:

  2.54 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  120

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  .139 N
