650R-27ILFT - Renesas Electronics

Description: The IDT650-27 is a low cost, low-jitter, high-performance clock synthesizer for networking applications. Using analog Phase Locked Loop (PLL) techniques, the device accepts a 12.5 MHz or 25 MHz clock or fundamental mode crystal input to produce multiple output clocks for networking chips, PCI devices, SDRAM, and ASIDT. The IDT650-27 outputs all have zero ppm synthesis error. The IDT650-27 is pin compatible and functionally equivalent to the IDT650-07. It is a performance upgrade and is recommended for all

Download 650R-27ILFT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

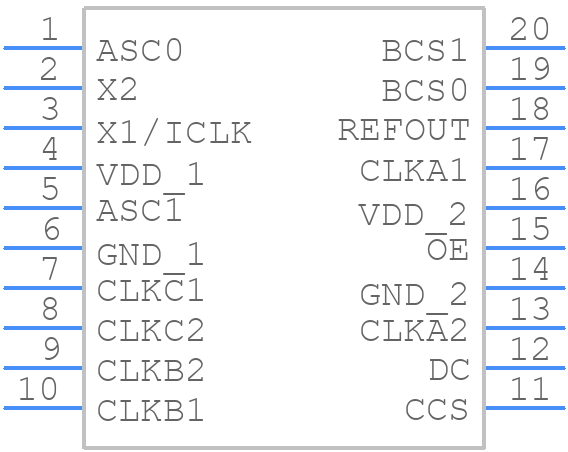

Symbol
650R-27ILFT - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
650R-27ILFT - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 20-pin SSOP, 150 Mil. Wide Body
click to zoom
3D Models
650R-27ILFT - Renesas Electronics - 3D model - Small Outline Packages - 20-pin SSOP, 150 Mil. Wide Body
click to zoom

650R-27ILFT Details

  • Manufacturer Part Number:

    650R-27ILFT

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QSOP

  • Package Description:

    SSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    PCG20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    133.3333 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    27 MHz

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, OTHER

650R-27ILFT Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
  • Renesas recommends using an external overcurrent protection circuit, such as a current sense resistor and a comparator, to detect overcurrent conditions. The datasheet provides guidelines for selecting the current sense resistor value and implementing the protection circuit.
  • The maximum allowed voltage drop across the internal voltage regulator is typically around 1.5V to 2V, depending on the specific application and operating conditions. Renesas recommends consulting their application notes and design guides for more information.
  • Renesas provides EMC design guidelines and recommendations in their application notes and design guides, including advice on PCB layout, component selection, and shielding to ensure EMC compliance.
  • The recommended operating temperature range for the 650R-27ILFT is typically -40°C to 125°C, although this may vary depending on the specific application and operating conditions. Renesas recommends consulting the datasheet and application notes for more information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

650R-27ILFT Overview

Use the download button to access the 650R-27ILFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 650R-, or try a keyword search, such as Clock Generators
