The recommended PCB footprint for the 651305142821 can be found in the Wurth Elektronik's PCB Library or in the component's datasheet under the 'Packaging' or 'Layout' section. It's essential to follow the recommended footprint to ensure proper assembly and thermal management.
The 651305142821 has a thermal pad on the bottom side, which should be connected to a copper area on the PCB to dissipate heat efficiently. Ensure the thermal pad is soldered to a large copper area or a thermal via to prevent overheating.
The maximum operating temperature for the 651305142821 is typically specified in the datasheet, but it's essential to check the specific temperature range for the component. In general, the operating temperature range for this component is -40°C to +125°C.
The 651305142821 is designed to withstand certain levels of vibration, but it's crucial to check the component's vibration specifications in the datasheet. If the expected vibration levels exceed the component's ratings, additional mechanical support or vibration dampening measures might be necessary.
To ensure EMC, follow proper PCB design and layout guidelines, such as keeping sensitive traces away from the component, using shielding, and implementing proper grounding techniques. Additionally, consider using EMC filters or common-mode chokes to minimize electromagnetic interference.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
651305142821 Overview

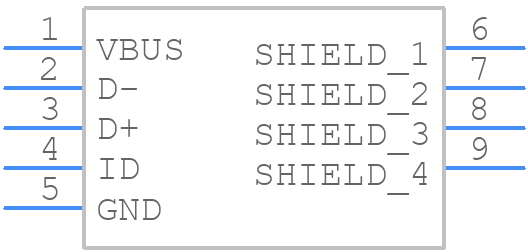

Use the download button to access the 651305142821 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 65130,
or try a keyword search, such as Telecom and Datacom Connectors
