656-15ABPE - Wakefield Thermal

Description: Heat Sinks High Performance Heat Sink for Vertical Board Mounting TO-220, 38.1x41.91mm, 25.4mm Height

Download 656-15ABPE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
656-15ABPE - Wakefield Thermal - PCB symbol
click to zoom
PCB Footprints

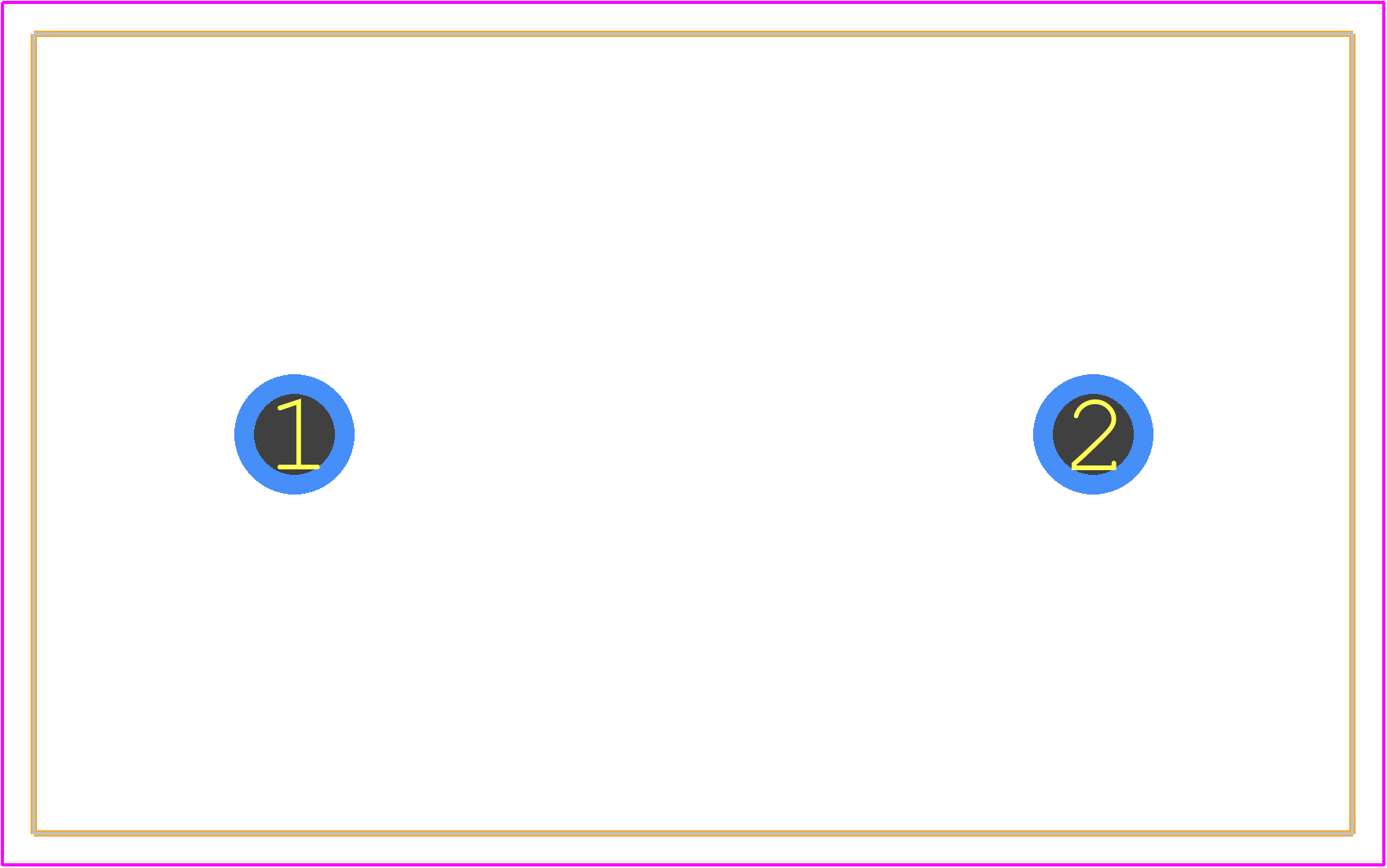

656-15ABPE - Wakefield Thermal PCB footprint - Other - Other - 656-15ABPE-1
click to zoom
3D Models
656-15ABPE - Wakefield Thermal - 3D model - Other - 656-15ABPE-1
click to zoom

656-15ABPE Details

  • Manufacturer Part Number:

    656-15ABPE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.90.00.00

  • Manufacturer:

    Wakefield-Vette

  • Body Material:

    ALUMINUM

  • Color:

    BLACK

  • Construction:

    EXTRUDED

  • Finish:

    ANODIZED

  • Height:

    38.1 mm

  • Length:

    41.91 mm

  • Thermal Support Device Type:

    HEAT SINK

  • Width:

    25.4 mm

656-15ABPE Frequently Asked Questions (FAQs)

  • The recommended mounting orientation is vertical, with the fins facing upwards to ensure optimal airflow and heat dissipation.
  • Yes, the 656-15ABPE is designed to withstand high-vibration environments, but it's recommended to secure the heat sink properly to prevent damage or detachment.
  • Wakefield-Vette recommends using a high-quality thermal interface material, such as a thermal paste or thermal tape, to ensure optimal thermal performance.
  • Yes, Wakefield-Vette offers customization options for the 656-15ABPE, including modifications to the fin density, material, and size. Contact their sales team for more information.
  • The operating temperature range for the 656-15ABPE is -40°C to 150°C, but it's recommended to consult the datasheet and Wakefield-Vette's application notes for specific temperature ratings.
