6565283-1 footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

PCB Footprints

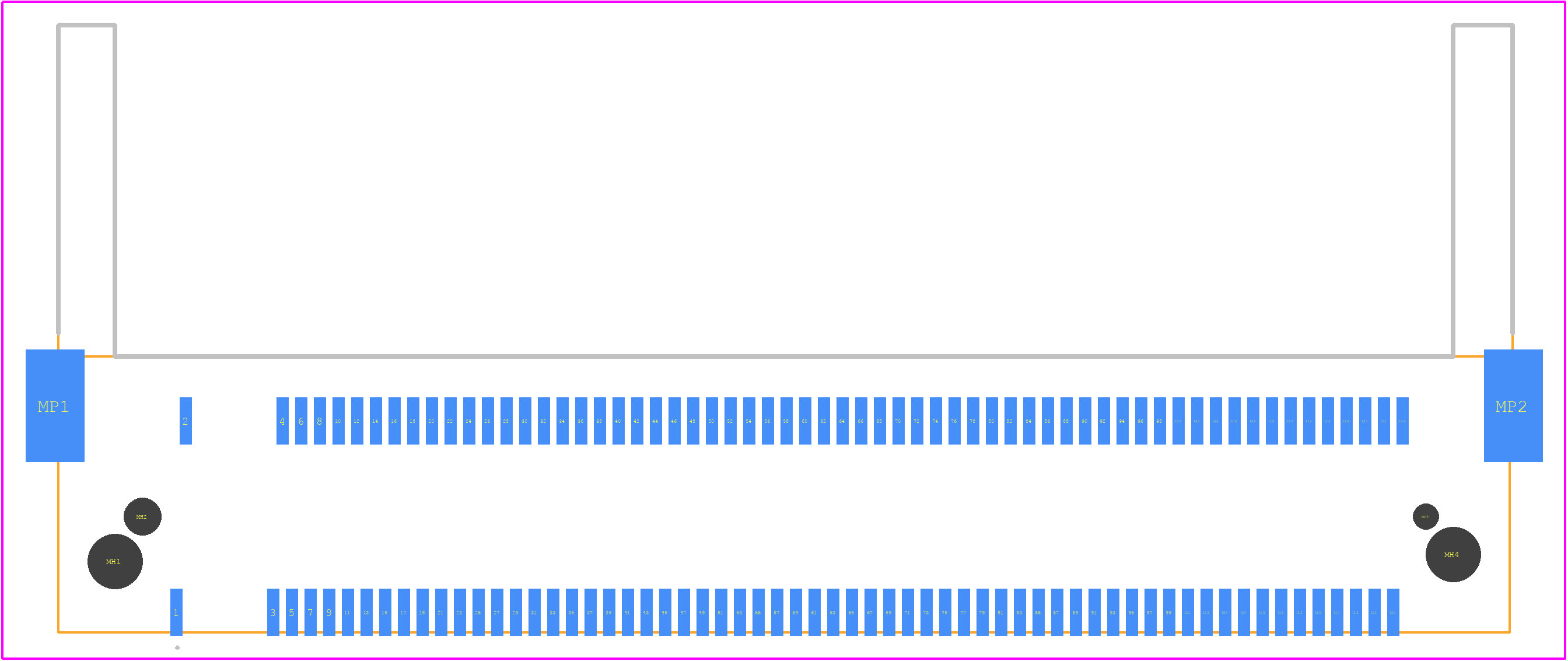

6565283-1 - TE Connectivity PCB footprint - Other - Other - 6565283-1-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 6565283-1
Part Number 6565283-1
Manufacturer TE Connectivity
Pin Count 126
Part Category Connector
Package Category Other
Footprint Name Other - 6565283-1-1
Released Date Oct 22, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

6565283-1 Details

Manufacturer Part Number:
6565283-1
Part Life Cycle Code:
Obsolete
Package Description:
LEAD FREE
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
TE Connectivity
YTEOL:
0
Body/Shell Style:
SOCKET
Connector Type:
CARD EDGE CONNECTOR
Contact Finish Mating:
GOLD FLASH (51) OVER NICKEL
Contact Finish Termination:
GOLD FLASH
Contact Gender:
FEMALE
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e4
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number of Rows Loaded:
2
Option:
GENERAL PURPOSE
Terminal Pitch:
0.8 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
124
UL Flammability Code:
94V-0

6565283-1 Frequently Asked Questions (FAQs)

The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure reliable connections and prevent damage to the connector.
Yes, the 6565283-1 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate smaller wire sizes (e.g., AWG 26-28) with the use of wire adapters or by following TE Connectivity's wire stripping and termination guidelines.
The 6565283-1 connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure the connector's performance and reliability.
The 6565283-1 connector is designed to meet IP67 standards, providing protection against dust and water ingress. However, it's essential to evaluate the specific environmental conditions and consider additional protection measures, such as conformal coatings or sealing, to ensure the connector's reliability in harsh environments.

Trust Checks

Community Provided

System Verified

Community Approved

6565283-1 Overview

Use the download button to access the 6565283-1 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 65652, or try a keyword search, such as Headers and Edge Type Connectors
